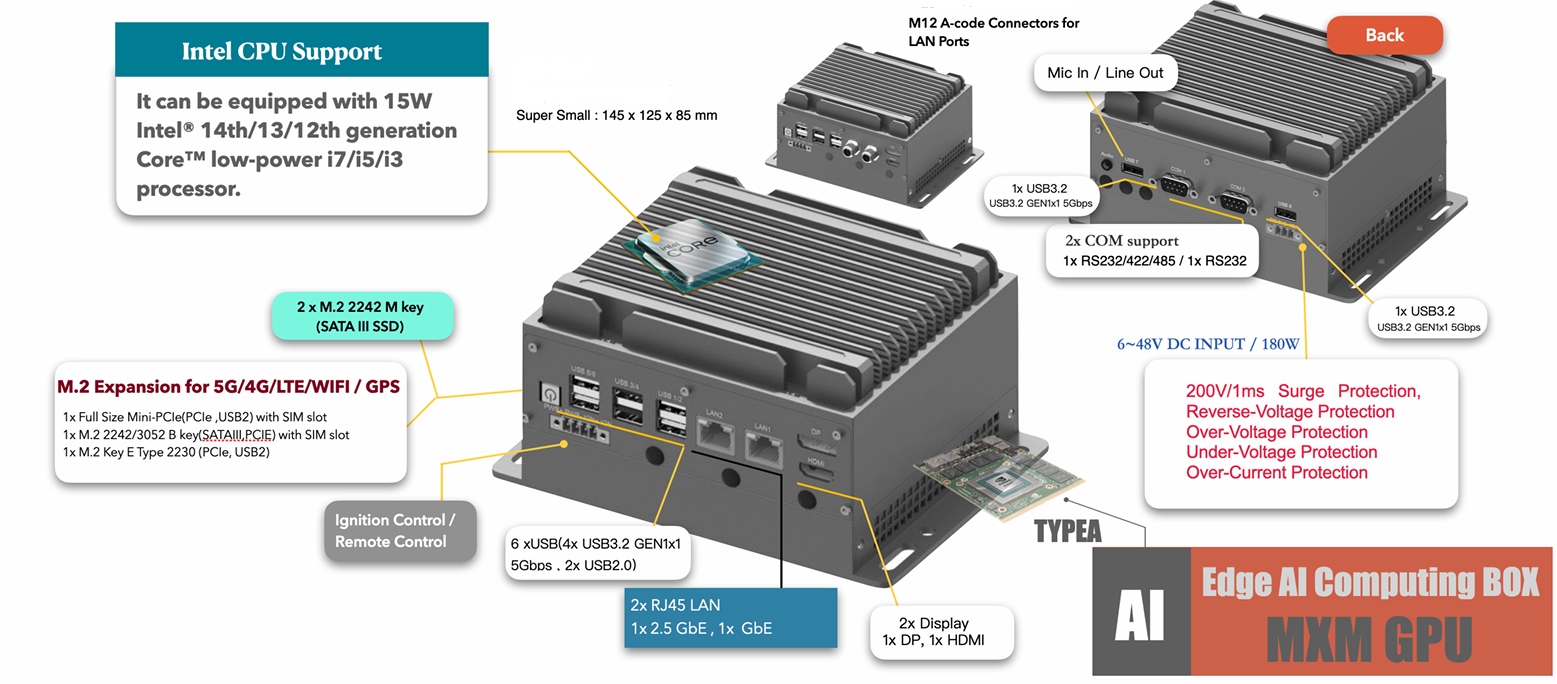

| 中央处理器 |
Intel® 13th/ 12th-Gen Core™ i7 /i5 /i3 (15W) , BGA CPU Onboard |
| 英特尔第12代CPU支持列表 |
i5-1235U
Intel® CoreTM i5-1235U processor with 2 P-cores and 8 E-cores up to 4.4GHz | 12MB
Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | Intel® code name
Alder Lake-P (U-Series,15W)
i3-1215U
Intel® CoreTM i3-1215U processor with 2 P-cores and 4 E-cores up to 4.4GHz | 10MB
Intel® Smart Cache | Intel® UHD Graphics 64EU | Intel® code name Alder Lake-P (U
Series,15W)
i5-1245UE
Intel® CoreTM i5-1245UE processor with 2 P-cores and 8 E-cores up to 4.4GHz | 12MB
Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | Intel® code name
Alder Lake-P (U-Series,15W)
i3-1215UE
Intel® CoreTM i3-1215UE processor with 2 P-cores and 4 E-cores up to 4.4GHz | 10MB
Intel® Smart Cache | Intel® UHD Graphics 64EU | Intel® code name Alder Lake-P (U
Series,15W)
|
| 英特尔第13代CPU支持列表 |
i5-1335U
Intel® CoreTM i5-1335U processor with 2 P-cores and 8 E-cores up to 4.6GHz | 12MB
Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | Intel® code name
Raptor Lake-P (U-Series,15W)
i3-1315U
Intel® CoreTM i3-1315U processor with 2 P-cores and 4 E-cores up to 4.5GHz | 10MB
Intel® Smart Cache | Intel® UHD Graphics 64EU | Intel® code name Raptor Lake-P (U
Series,15W)
i5-1335UE
Intel® CoreTM i5-1335UE processor with 2 P-cores and 8 E-cores up to 4.5GHz | 12MB
Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | Intel® code name
Raptor Lake-P (U-Series,15W)
i3-1315UE
Intel® CoreTM i3-1315UE processor with 2 P-cores and 4 E-cores up to 4.5GHz | 10MB
Intel® Smart Cache | Intel® UHD Graphics 64EU | Intel® code name Raptor Lake-P (U
Series,15W)
|
| MXM扩展 |
支持TYPE A:82 x 70毫米MXM GPU模块
|
| MXM GPU支持列表 |
RTX4050-6G-35W
MXM GPU Module for Edge AI computing , 82mm x 70mm ,
NVIDIA RTX4050/6GB GDDR6 with
35W low-power consumption to provide single-precision 8.218 TFLOPS and integer
194 TOPS computing capability.
A2000-8G
NVIDIA A2000/8GB GDDR6 MXM GPU Module for Edge
AI computing , 82mm x 70mm with 38/50W low-power consumption to provide
single-precision 8.958 TFLOPS .
MX550/4GB
NVIDIA MX550/4GB
GDDR6 MXM GPU module which is the best inference choice for embedded edge AI
application , 82mm x 70mm with 35W low-power consumption to provide
single-precision 4.5 TFLOPS and 1024 CUDA computing capability.The AI
performance is better than that of GTX 1050ti but only 35W power consumption.
|
| 内存 |
内存最大容量64GB DDR5，配备2x SO-DIMM |
| LAN |
2x LAN(1x 2.5GbE, 1x GbE,RJ45或M12连接器) |
| 串口 |
2x串口（1x RS232/422/485, 1x RS232） |
| USB |
8x USB( 6x USB3.2 GEN1x1 5Gbps, 2x USB 2.0) |
| 音频 |
1个3.5mm插孔，用于麦克风输入和输出 |
| 显示 |
2x Displays (1x HDMI , 1x DP) |
| 存储 |
2x M.2 2242 SATA III for SSD (1x share with M.2 3052 slot ) |
| 内部扩展 |
1x M.2 2242/3052 B key with SIM slot, support 4G/5G
1x Full Size Mini-PCIe with SIM slot, support 4G/5G
1x M.2 Key E Type 2230 for WIFI/BT/GPS
|
| 电源 |
6~48V宽直流输入电压
1x电源按钮
1x 3针可插拔端子板，用于6~48V DC输入
1x 4针可插拔接线端子，用于点火控制和远程控制
|
| 工作环境 |
工作温度：-40°C~70°C（根据CPU），GPU TGP 35W（50°C）
储存温度：-40°C至85°C
工作湿度: 0~95%(non-condensing）
存储湿度: 10~90%
|
| 尺寸 |
145(W) x 125(D) x85.6 (H) mm |
| 重量 |
1.1 Kg |
| 结构 |
铝制金属机壳，单边无风扇设计 |
| 操作系统 |
windows10、11
Ubuntu20.04、22.04
|
| Vibration / Shock |
Vibration test according to MIL-STD-810H, Method 514.8, Category 4
Shock test according to MIL-STD-810H, Method 516.8, Procedure I
|
| EMC |
CE/FCC Class A , according to EN 55032 & EN 55035 , (E-Mark / EN50155 / EN45545-2 by request) |
