| 中央处理器 |
支持英特尔®13/12代酷睿™i9/i7/i5（U_15W、P_28W、H_45W）
|
| 英特尔第12代CPU支持列表 |
i9-12900H
Intel® CoreTM i9-12900H processor with 6 P-cores and 8 E-cores up to 5.0GHz | 24MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 96 EUs | Intel® code name Alder Lake-P (H-Series,45W)
i7-12700H
Intel® CoreTM i7-12700H processor with 6 P-cores and 8 E-cores up to 4.7GHz | 24MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 96 EUs | Intel® code name Alder Lake-P (H-Series,45W)
i5-12600H
Intel® CoreTM i5-12600H processor with 4 P-cores and 8 E-cores up to 4.5GHz | 18MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 80 EUs | Intel® code name Alder Lake-P (H-Series,45W)
i7-1260P
Intel® CoreTM i7-1260P processor with 4 P-cores and 8 E-cores up to 4.7GHz | 18MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 96 EUs | Intel® code name Alder Lake-P (P-Series,28W)
i5-1250P
Intel® CoreTM i5-1250P processor with 4 P-cores and 8 E-cores up to 4.4GHz | 12MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 80 EUs | Intel® code name Alder Lake-P (P-Series,28W)
i5-1235U
Intel® CoreTM i5-1235U processor with 2 P-cores and 8 E-cores up to 4.4GHz | 12MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 80 EUs | Intel® code name Alder Lake-P (U-Series,15W)
i3-1215U
Intel® CoreTM i3-1215U processor with 2 P-cores and 4 E-cores up to 4.4GHz | 10MB Intel® Smart Cache |
Intel® UHD Graphics 64EU | Intel® code name Alder Lake-P (U-Series,15W
|
| 英特尔第13代CPU支持列表 |
i9-13900HK
Intel® CoreTM i9-13900HK processor with 6 P-cores and 8 E-cores up to 5.4GHz | 24MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 96 EUs | Intel® code name Raptor Lake-P (H-Series,45W)
i7-13800H
Intel® CoreTM i7-13800H processor with 6 P-cores and 8 E-cores up to 5.2GHz | 24MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 96 EUs | Intel® code name Raptor Lake-P (H-Series,45W)
i5-13600H
Intel® CoreTM i5-13600H processor with 4 P-cores and 8 E-cores up to 4.8GHz | 18MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 80 EUs | Intel® code name Raptor Lake-P (H-Series,45W)
i7-1360P
Intel® CoreTM i7-1360P processor with 4 P-cores and 8 E-cores up to 5.0GHz | 18MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 96 EUs | Intel® code name Raptor Lake-P (P-Series,28W)
i5-1350P
Intel® CoreTM i5-1350P processor with 4 P-cores and 8 E-cores up to 4.7GHz | 12MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 80 EUs | Intel® code name Raptor Lake-P (P-Series,28W)
i5-1335U
Intel® CoreTM i5-1335U processor with 2 P-cores and 8 E-cores up to 4.6GHz | 12MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 80 EUs | Intel® code name Raptor Lake-P (U-Series,15W)
i3-1315U
Intel® CoreTM i3-1315U processor with 2 P-cores and 4 E-cores up to 4.5GHz | 10MB Intel® Smart Cache |
Intel® UHD Graphics 64EU | Intel® code name Raptor Lake-P (U-Series,15W)
|

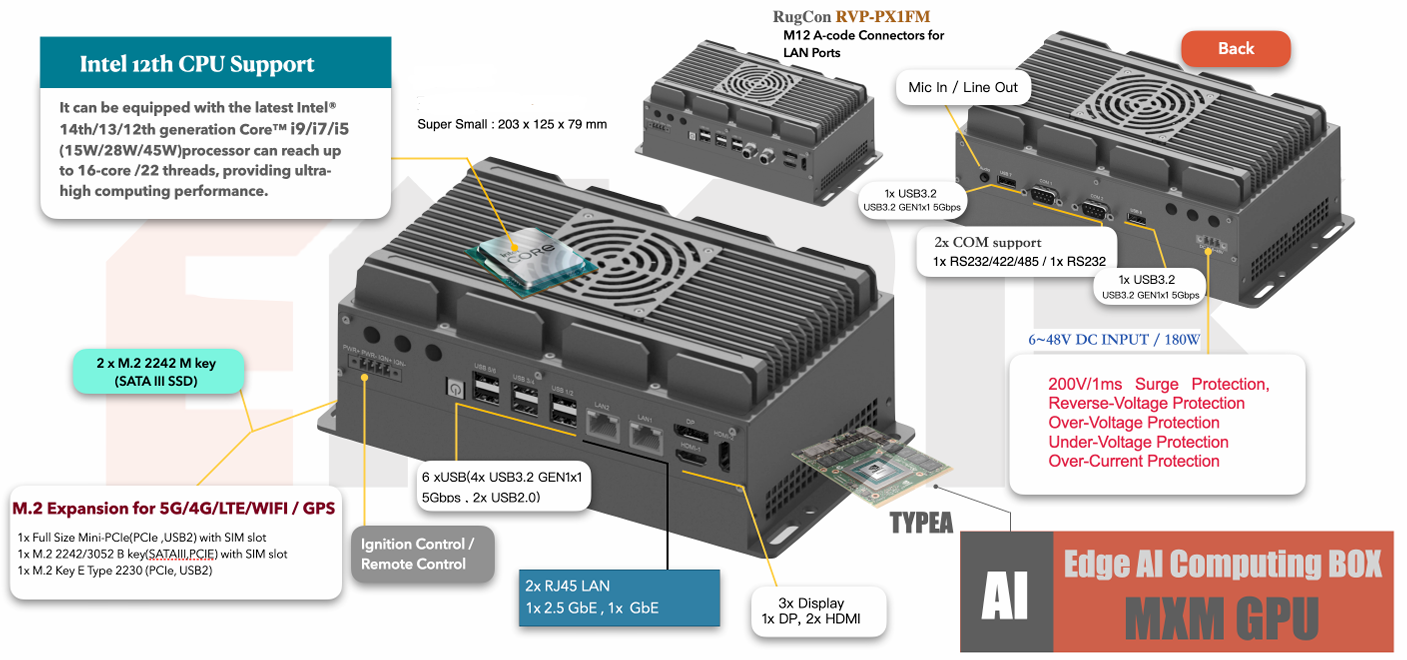

| MXM扩展 |
支持NVIDIA®Ampere/Ada Lovelace TYPE A MXM GPU模块，最高支持65W TGP
|
| MXM GPU支持列表 |
RTX4070-8G
RTX4070/8GB GDDR6 MXM GPU
Module for Edge AI computing , 82mm x 70mm with 65W low-power consumption to
provide single-precision 15.71 TFLOPS and integer 321 TOPS computing
capability.
RTX4060-8G
NVIDIA RTX4060/8GB GDDR6 MXM
GPU Module for Edge AI computing , 82mm x 70mm with 60W low-power consumption
to provide single-precision 12.22 TFLOPS and integer 232 TOPS computing
capability.
RTX4050-6G-35W
MXM GPU Module for Edge AI computing , 82mm x 70mm ,
NVIDIA RTX4050/6GB GDDR6 with
35W low-power consumption to provide single-precision 8.218 TFLOPS and integer
194 TOPS computing capability.
RTX2000-8G
NVIDIA RTX2000/8GB GDDR6 MXM GPU Module for Edge AI computing , 82mm x
70mm with 56.5W low-power consumption to provide single-precision 14.176 TFLOPS
and integer 232 TOPS computing capability
A2000-8G
NVIDIA A2000/8GB GDDR6 MXM GPU Module for Edge AI computing , 82mm x 70mm with 38/50W low-power
consumption to provide single-precision 8.958 TFLOPS .
|
| 内存 |
最大容量64GB DDR5，配备2x SO-DIMM |
| 显示 |
3x Display （ 1x Display Port, 4096*2304@60Hz ， 2x HDMI , 4096*2160@30Hz）
|
| LAN |

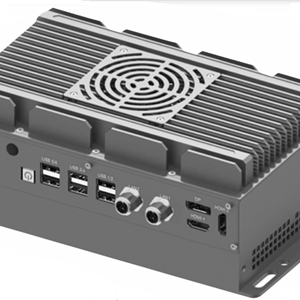

2xLAN（1x 2.5 GbE , 1x GbE RJ45或M12连接器） |
| 串口 |
2xCOM(1x RS232/422/485, 1x RS232) |
| USB |
8x USB (6x USB3.2 GEN1x1 5Gbps, 2x USB 2.0) |
| 音频 |
1个3.5mm插孔，用于麦克风输入和输出 |
| 存储 |
2x M.2 2242 M key (SATA III SSD) , Support Raid 0/1 , (1x M.2 2242 share with M.2 3052) |
| 内部扩展 |
1x M.2 2242/3052 M-B key with SIM slot, support 4G/5G
1x Full Size Mini-PCIe with SIM slot, support 4G/5G
1x M.2 Key E Type 2230 for WIFI/BT/GPS
|
| 电源 |
1个3针可插拔接线端子，用于6~48V DC输入
200V/1ms浪涌保护、反向电压、过压、欠压、过流保护
1x电源按钮
1x 4针可插拔接线端子，用于点火/遥控
|
| 操作系统 |
windows10、11
Ubuntu20.04、22.04
|
| 结构 |
铝制金属机壳，单边主动散热设计 |
| 尺寸 |
203(W) x 125(D) x 79(H) mm |
| 重量 |
2.1Kg |
| 工作环境 |
工作温度：-40°C~70°C（根据CPU），TGP 65W（45°C），TGG 35W（60°C）
储存温度：-40°C至85°C
工作湿度：0~95%(non-condensing ）
储存湿度：10~90%
|
| Vibration / Shock |
Vibration test according to MIL-STD-810H, Method 514.8, Category 4
Shock test according to MIL-STD-810H, Method 516.8, Procedure I
|
| EMC |
CE/FCC Class A , according to EN 55032 & EN 55035 , E-Mark / EN50155 / EN45545-2 by request |
