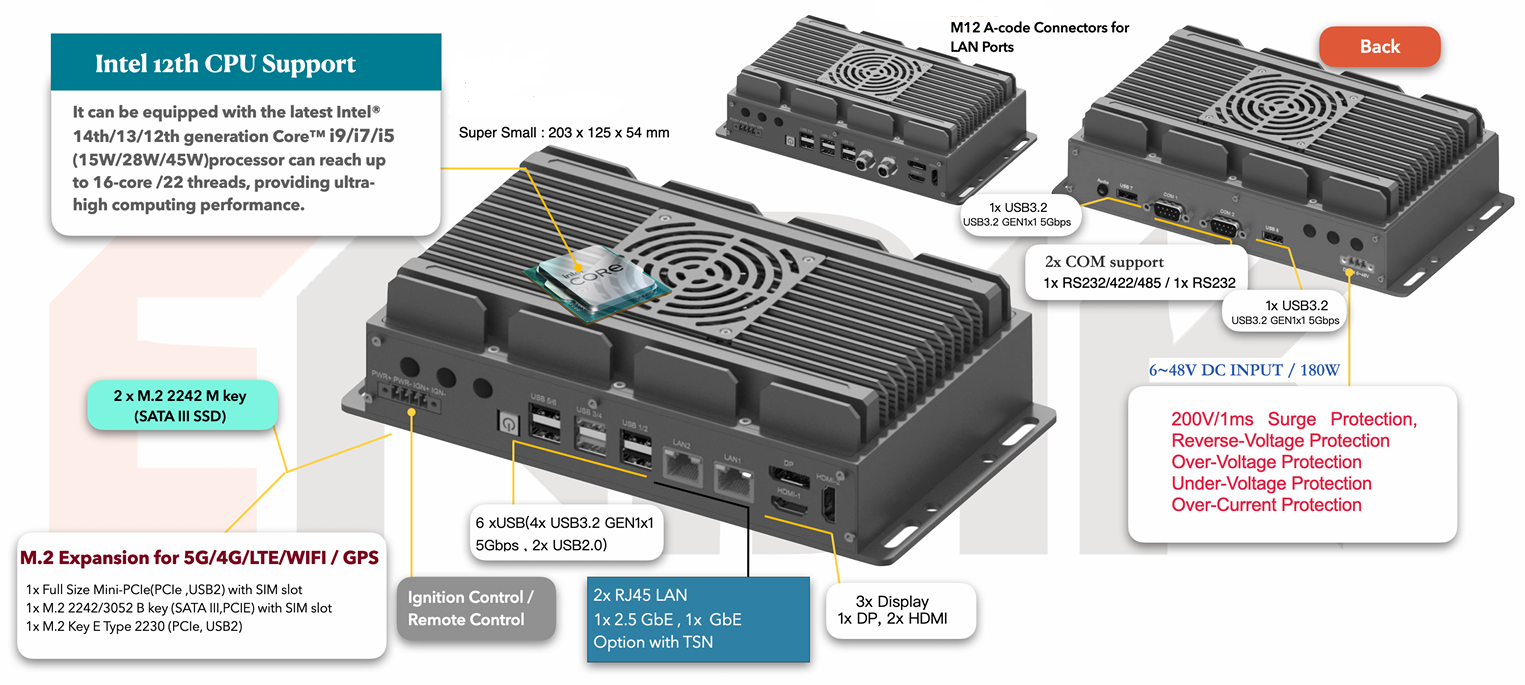

| 中央处理器 |
英特尔®13/12代酷睿™i9/i7/i5（U_15W、P_28W、H_45W） |
| 英特尔第12代CPU支持列表 |
i9-12900H
Intel® CoreTM i9-12900H processor with 6 P-cores and 8 E-cores up to 5.0GHz | 24MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 96 EUs | Intel® code name Alder Lake-P (H-Series,45W)
i7-12700H
Intel® CoreTM i7-12700H processor with 6 P-cores and 8 E-cores up to 4.7GHz | 24MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 96 EUs | Intel® code name Alder Lake-P (H-Series,45W)
i5-12600H
Intel® CoreTM i5-12600H processor with 4 P-cores and 8 E-cores up to 4.5GHz | 18MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 80 EUs | Intel® code name Alder Lake-P (H-Series,45W)
i7-1260P
Intel® CoreTM i7-1260P processor with 4 P-cores and 8 E-cores up to 4.7GHz | 18MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 96 EUs | Intel® code name Alder Lake-P (P-Series,28W)
i5-1250P
Intel® CoreTM i5-1250P processor with 4 P-cores and 8 E-cores up to 4.4GHz | 12MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 80 EUs | Intel® code name Alder Lake-P (P-Series,28W)
i5-1235U
Intel® CoreTM i5-1235U processor with 2 P-cores and 8 E-cores up to 4.4GHz | 12MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 80 EUs | Intel® code name Alder Lake-P (U-Series,15W)
i3-1215U
Intel® CoreTM i3-1215U processor with 2 P-cores and 4 E-cores up to 4.4GHz | 10MB Intel® Smart Cache |
Intel® UHD Graphics 64EU | Intel® code name Alder Lake-P (U-Series,15W)
|
| 英特尔第13代CPU支持列表 |
i9-13900HK
Intel® CoreTM i9-13900HK processor with 6 P-cores and 8 E-cores up to 5.4GHz | 24MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 96 EUs | Intel® code name Raptor Lake-P (H-Series,45W)
i7-13800H
Intel® CoreTM i7-13800H processor with 6 P-cores and 8 E-cores up to 5.2GHz | 24MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 96 EUs | Intel® code name Raptor Lake-P (H-Series,45W)
i5-13600H
Intel® CoreTM i5-13600H processor with 4 P-cores and 8 E-cores up to 4.8GHz | 18MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 80 EUs | Intel® code name Raptor Lake-P (H-Series,45W)
i7-1360P
Intel® CoreTM i7-1360P processor with 4 P-cores and 8 E-cores up to 5.0GHz | 18MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 96 EUs | Intel® code name Raptor Lake-P (P-Series,28W)
i5-1350P
Intel® CoreTM i5-1350P processor with 4 P-cores and 8 E-cores up to 4.7GHz | 12MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 80 EUs | Intel® code name Raptor Lake-P (P-Series,28W)
i5-1335U
Intel® CoreTM i5-1335U processor with 2 P-cores and 8 E-cores up to 4.6GHz | 12MB Intel® Smart Cache |
Intel® Iris® Xe Graphics architecture with 80 EUs | Intel® code name Raptor Lake-P (U-Series,15W)
i3-1315U
Intel® CoreTM i3-1315U processor with 2 P-cores and 4 E-cores up to 4.5GHz | 10MB Intel® Smart Cache |
Intel® UHD Graphics 64EU | Intel® code name Raptor Lake-P (U-Series,15W)
|
| 内存 |
配备2x SO-DIMM DDR5插槽，最大可扩展64G |
| 显示 |
3x Display （1x Display Port, 4096*2304@60Hz 2x HDMI , 4096*2160@30Hz）
|
| 网口 |

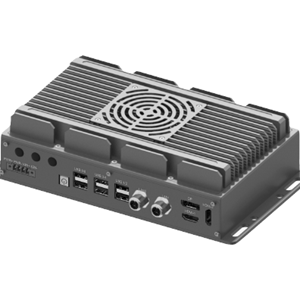

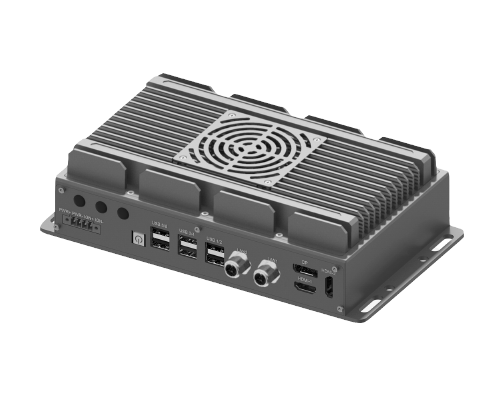

2xLAN(1x 2.5 GbE , 1x GbE RJ45或M12连接器） |
| 串口 |
2x串口（1x RS232/422/485, 1x RS232） |
| USB |
8x USB (6x USB3.2 GEN1x1 5Gbps, 2x USB 2.0) |
| 音频 |
1个3.5mm插孔，用于麦克风输入和输出 |
| 存储 |
2x M.2 2242 M key (SATA III SSD) , Support Raid 0/1 , (1x M.2 2242 share with M.2 3052) |
| 内部扩展 |
1x M.2 2242/3052 M-B key with SIM slot, support 4G/5G
1x Full Size Mini-PCIe with SIM slot, support 4G/5G
1x M.2 Key E Type 2230 for WIFI/BT/GPS
|
| 电源 |
1x 3针可插拔接线端子，用于6~48V DC输入
200V/1ms浪涌保护、反向电压、过压、欠压、过流保护
1x 电源按钮
1x 4针可插拔接线端子，用于点火/遥控
|
| 结构 |
铝制金属机箱 |
| 工作环境 |
工作温度：-40°C至70°C（根据TDP）
储存温度：-40°C至85°C
工作湿度：0~95%（不凝结）
储存湿度：10~90%
|
| 尺寸 |
203(W) x 125(D) x 54(H) mm |
| 重量 |
1.3 Kg |
| Vibration / Shock |
Vibration test according to MIL-STD-810H, Method 514.8, Category 4
Shock test according to MIL-STD-810H, Method 516.8, Procedure I
|
| EMC |
CE/FCC Class A , according to EN 55032 & EN 55035 , E-Mark / EN50155 / EN45545-2 by request
|
| 操作系统 |
windows10、11
Ubuntu20.04、22.04
|
