| CPU |
Support 6th generation Intel® Core™ i7/i5/i3 LGA socket type processors
- Core™ i7-6700TE, Quad Core, 2.4GHz, 8M Cache (maximum frequency 3.4GHz if turbo boost enabled)
- Core™ i5-6500TE, Quad Core, 2.3GHz, 6M Cache (maximum frequency 3.3GHz if turbo boost enabled)
- Core™ i3-6100TE, Dual Core, 2.7GHz, 4M Cache (no turbo boost)
- Pentium G4400TE, Dual Core, 2.4GHz, 3M Cache (no turbo boost)
- Celeron® G3900TE, Dual Core, 2.3GHz, 2M Cache (no turbo boost) |
| 内存 |
2 x DDR4 SO-DIMM socket, supports 2133MHz and up to 8GB with un-buffered and non-ECC type |
| 显示选项 |
Dual independent display
HDMI + DVI-D |
| 前置I/O 接口状态 LED指示 |
1 x battery/ 1 x C-Fast LEDs
4 x GPO status/ 2 x Tx/ Rx LEDs
1 x power/ 1 x HDD access LEDs |

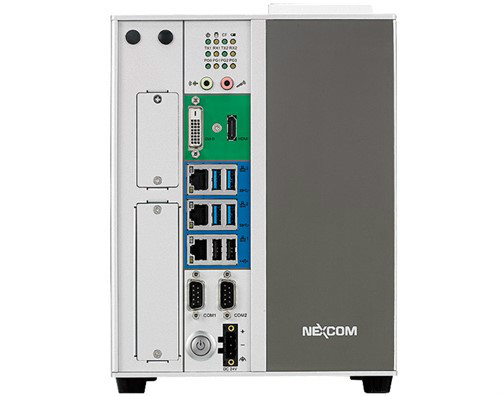

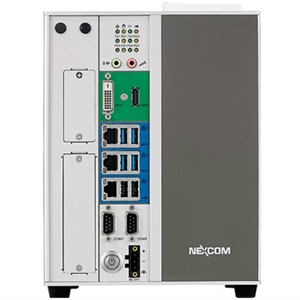

| 前置 I/O 接口 |
1 x ATX power on/off switch
1 x HDMI and 1 x DVI-D
4 x USB 3.0 ports (900mA per each)
2 x USB 2.0 ports (500mA per each)
1 x Line-out and 1 x Mic-in
2 x Antenna holes for WI-FI/GSM
1 x Front access 2.5” HDD tray
1 x Mini-PCIe expansion support optional modules
2 x RS232/422/485 auto with 2.5KV Isolation
3 x Intel® I210IT GbE LAN ports, support WoL, teaming and PXE |
| 顶部 I/O 接口 |
1 x 3-pin remote switch
1 x CFast expansion
1 x SIM card |
| 存储设备 |
1 x CFast (SATA 3.0)
1 x 2.5” HDD (external, SATA 3.0)
1 x 2.5” HDD (internal, SATA 3.0)
1 x mSATA (via internal mini PCIe socket) |

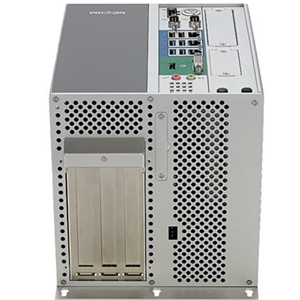

| 扩展槽 |
NIFE 300: no expansion
NIFE 300P2: two PCI expansion slots
- Add-on card length: 180mm max
- Power consumption: 10W/slot max
NIFE 300P2E: one PCI expansion slot, and one PCIe x8 expansion slot
- Add-on card length: 180mm max
- Power consumption: 10W/slot max
NIFE 300P3: two PCI expansion slots and one PCIe x8 expansion slot
- Add-on card length: 180mm max
- Power consumption: 10W/slot max
NIFE 300E3: one PCIe x8 and two PCIe x4 expansion slot
- Add-on card length: 180mm max
- Power consumption: 10W/slot max
NIFE 300E16: one PCIe x16 expansion slot
- Add-on card length: 180mm
- Power consumption: 30W/slot max |
| 电源需求 |
AT/ATX power mode (default with ATX power mode)
Power input: typical +24VDC +/- 20%, with reverse polarity protection
Power adapter: optional AC to DC power adapter (+24Vdc, 120W or 180W) |
| 体积 |
NIFE 300: 90 mm(W) x 185mm (D) x 251mm (H)
NIFE 300P2: 155 mm(W) x 185mm (D) x 251mm (H)
NIFE 300P2E: 155 mm(W) x 185mm (D) x 251mm (H)
NIFE 300E16: 155 mm(W) x 185mm (D) x 251mm (H)
NIFE 300P3: 175 mm(W) x 185mm (D) x 251mm (H)
NIFE 300E3: 175 mm(W) x 185mm (D) x 251mm (H) |
| 机械构造 |
Aluminum and metal chassis with front access design |
| 环境 |
Operating Temperature:
Ambient with air flow: -5°C to 55°C
according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage Temperature: -20°C to 85°C
Relative Humidity: 10% to 93% (non-condensing)
Shock Protection:
- HDD: 20G, half sine, 11ms, IEC60068-27
- CFast: 50G, half sine, 11ms, IEC60068-27
Vibration protection w/HDD condition:
- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-64 |
| 通过认证 |
CE approval
- EN61000-6-2
- EN61000-6-4
FCC Class A
LVD |
| 支持操作系统 |
Windows 7 32-bit and 64-bit
Windows 10 Enterprise 64-bit |
