首页 > 嵌入式列车车载平台

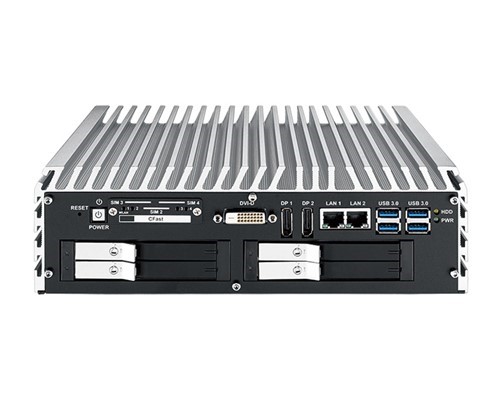

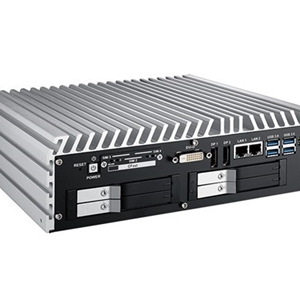

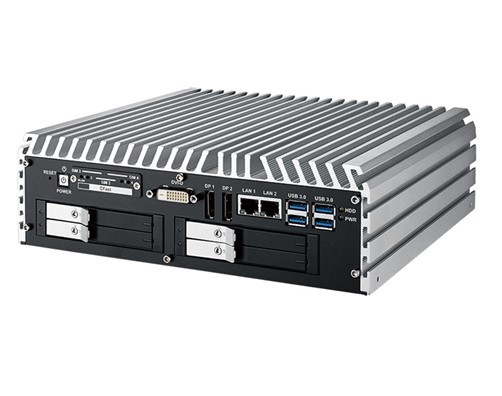

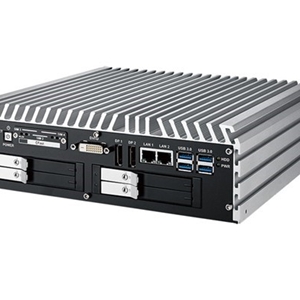

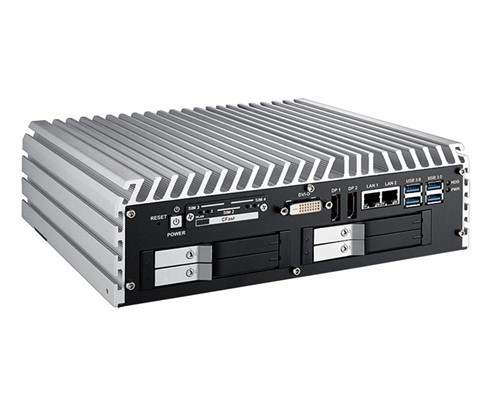

IVH9000,16*POE,Intel® Xeon®/Core™ i7/i5/i3 Processor,6V to 78V DC-in



主要特点



Quad Core 6th Generation Intel® Xeon®/Core™ i7/i5/i3 Processor (Skylake-H) with CM236 Chipset supports up to 4K displays
2 DDR4 2133MHz Memory, up to 32GB (ECC/Non-ECC)
Fanless, -25°C to 70°C Operating Temperature
18 Gigabit LAN with 16 IEEE 802.3at PoE+ compliant
4 Mini PCIe, 4 SIM Card Socket (3 External)
4 Front-access 2.5" SSD Tray, 5 USB
Supports 3G/4G/LTE/WiFi/GPRS/UMTS
16 Isolated DIO, 16 GPIO
Configurable Ignition Power Control
6V to 78V DC-in, 200V Surge Protection
UPS Supported (Optional)


产品规格 订购信息 文件下载
特点描述

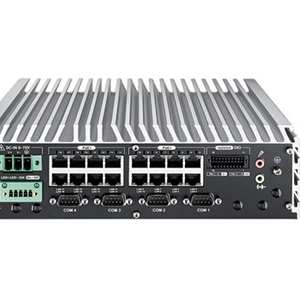

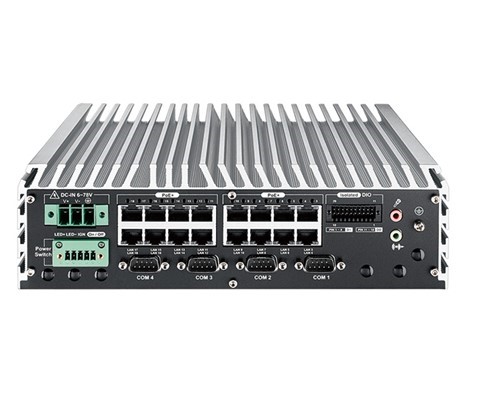

16-port PoE+
IEEE 802.3at PoE+ standard compliant
Supports 25.5W/48V each port
Per-port Power On/Off Control
Supports PoE management



Trusted Data Security
4 Front-access 2.5" SSD/HDD trays, up to 8TB capacity
Supports RAID 0, 1, 5, 10 data security
6 SATA III support up to 6Gbps data rate

Diversity of Expansions
4 SIM sockets support seamless data communication
Supports WiFi/Bluetooth/CAN Bus
Onboard GPS supports Accelerometer, Gyroscope & Odometer

Secure Power Protection
6V to 78V extra-wide range DC power input
16-mode Configurable Ignition Power Control
16 Isolated DIO
200V Surge Protection
