| 面板 |
LCD size: 15", 4:3
Resolution: XGA 1024 x 768
Luminance: 450cd/m²
Contrast ratio: 800
LCD color: 16.2M
Viewing angle: 70 (U), 80 (D), 80 (L), 80 (R)
Backlight: LED |
| 触摸屏 |
5-wire resistive (flush panel type)
Light transmission: 81%
Interface: USB |
| 系统 |
CPU: on-board Intel® Celeron® Quad Core processor J1900 processor, up to 2.42GHz, 2M L2 cache
BIOS: AMI BIOS
System memory: 2 x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), support up to 8GB DDR3L-1066/1333, non-ECC and un-buffered
Storage device:
- 1 x external locked CFast socket
- 1 x hard drive bay: optional 1 x 2.5" SATA HDD or 1 x SATA DOM
Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)
H/W status monitor: monitoring system temperature, and voltage
Expansion: 2 x mini-PCIe sockets (support optional Wi-Fi, 3.5G module) |

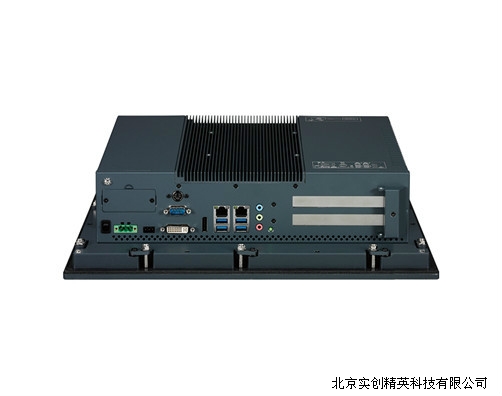

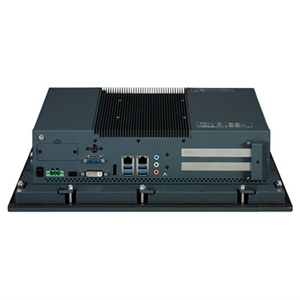

| 后置I/O |
Ethernet: 2 x RJ45
2nd display VGA port: 1 x DB15
Audio port: 1 x Line-out
USB: 2 x USB 2.0, 1 x USB 3.0
PS2 keyboard/mouse
Power switch
Reset button
2-pin remote power on/ off switch
COM #1: RS232/422/485 w/ 2.5kv isolated
COM #2: RS232/422/485 w/ 2.5kv isolated |
| 音频 |
HD audio codec: realtek ALC886-GR
Audio interface: Line-out |
| 以太网 |
LAN chip: dual Intel® I210AT Gigabit LAN
Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible |
| 机械构造&环境 |
Color: pantone black\RAL 15 00 front bezel w/ Pantone 400C\RAL 090 80 10 metal style membrane
IP protection: IP65 front
Mounting: panel/wall/stand/VESA 100mm x 100mm
Power input: 12V~30VDC
Power adapter: Optional AC to DC power adapter (+12V, 60W)
Vibration:
- IEC 68 2-64 (w/ HDD)
- 1Grms @ sine, 5~500Hz, 1hr/axis (HDD Operating)
- 2Grms @ sine, 5~500Hz, 1hr/axis (CFast Operating)
- 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)
Shock:
- IEC 68 2-27
- HDD: 20G@wall mount, half sine, 11ms
Operating temperature: -5°C to 60°C
Storage temperature: -20°C to 75°C
Operating humidity: 10%~90% relative humidity, non-condensing Limits to be at 90% RH at max 50°C
Dimension: 384.37 x 309.95 x 63.2 mm
Weight: 5.1 Kg |
| 通过认证 |
CE approval
FCC Class A |
| OS Support Lists |
Windows 8 32bit/64bit
Windows 7 32bit/64bit
WinCE 7.0 |
