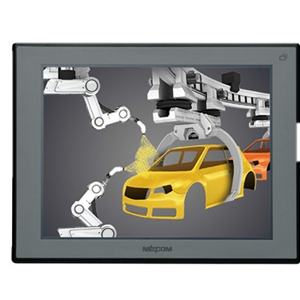

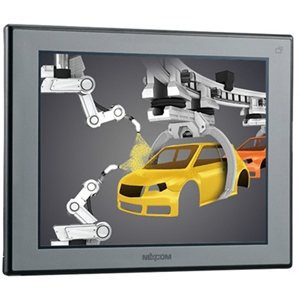

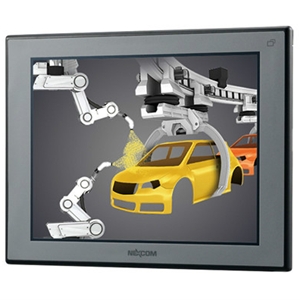

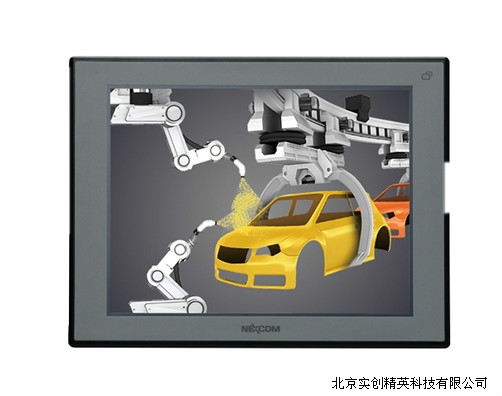

| 面板 |

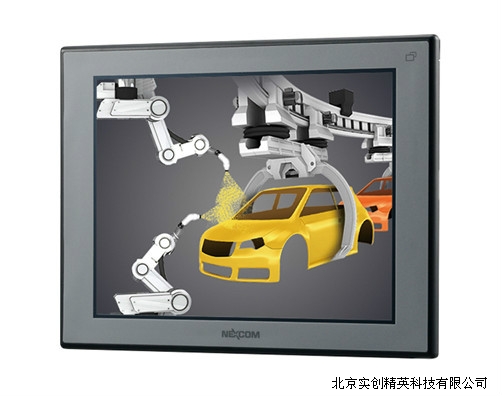

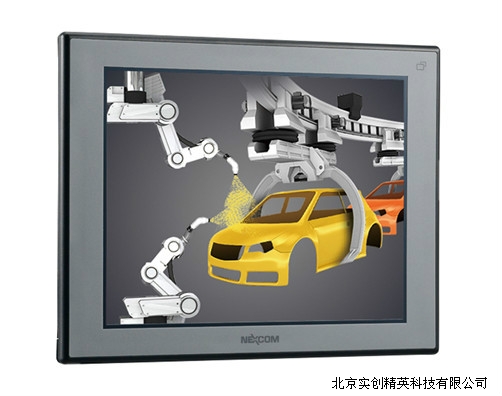

LCD size: 12.1", 4:3
Resolution: SVGA 800 x 600
Luminance: 450cd/m2
Contrast ratio: 700
LCD color: 16.2M
Viewing angle: 65 (U), 75 (D), 80 (L), 80 (R)
Backlight: LED |
| 触摸屏 |
5-wire resistive (flush panel type)
Light transmission: 80%
Interface: USB and RS232 |

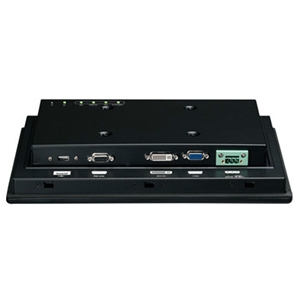

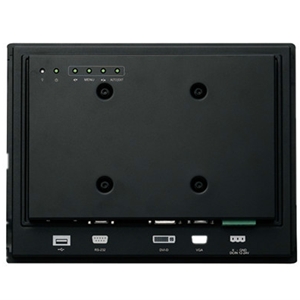

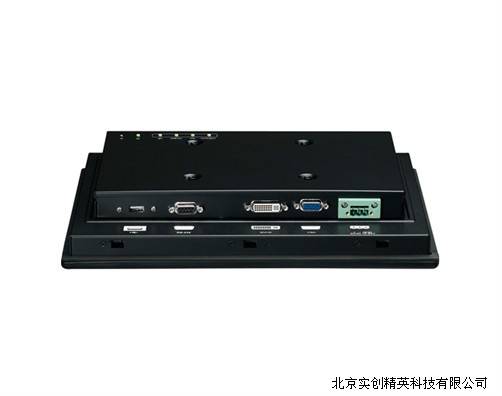

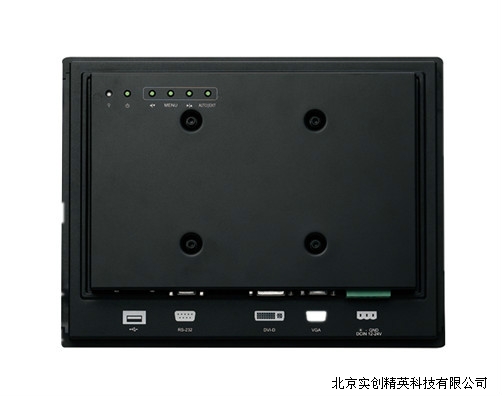

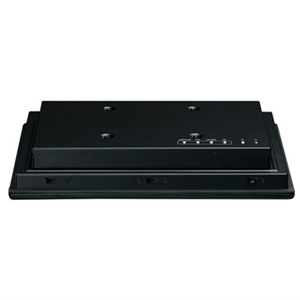

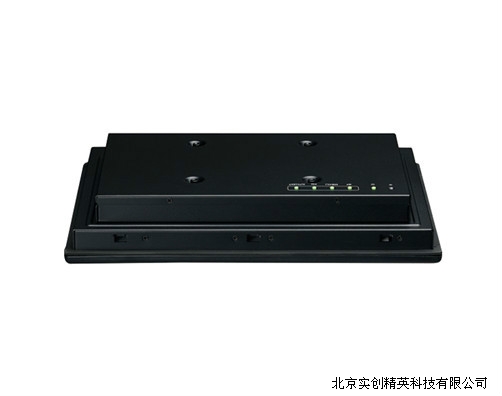

| 后置I/O |
ouch screen interface port: RS-232 (1 x DB9)/USB Type A
Video port: VGA (1 x DB15)/DVI-D (1 x DVI-I connector)
DC power input connector: 3-Pin Phoenix terminal Blocks |
| OSD功能 |
OSD keypad
Multilanguage OSD |
| 外观&运行环境 |
Color: pantone black
IP protection: IP65 front
Mounting: panel/wall/stand/VESA 100mm x 100mm
Power input: 12V~24VDC
Power adapter: optional AC to DC power adapter (+12V, 60W)
Vibration:
IEC 68 2-64
2Grms @ sine, 5~500Hz, 1hr/axis (Operating)
2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)
Shock:
IEC 68 2-27
20G@wall mount, half sine, 11ms
Operating temperature: -5°C to 50°C
Storage temperature: -20°C to 75°C
Operating humidity: 10%~90% relative humidity, non-condensing
Dimension: 317 x 243 x 53.5mm
Weight: 2.9Kg |
| 认证 |
CE approval
FCC Class B |
