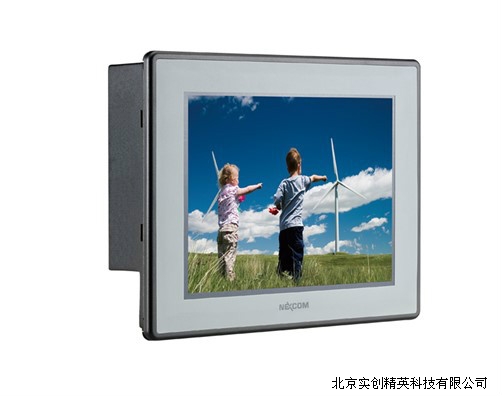

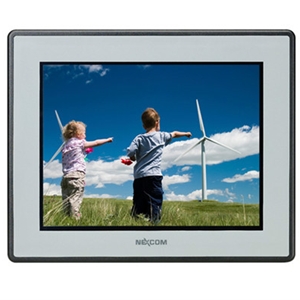

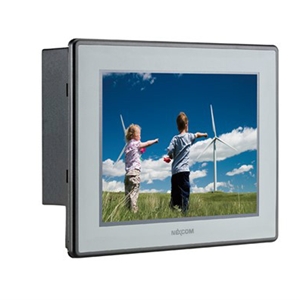

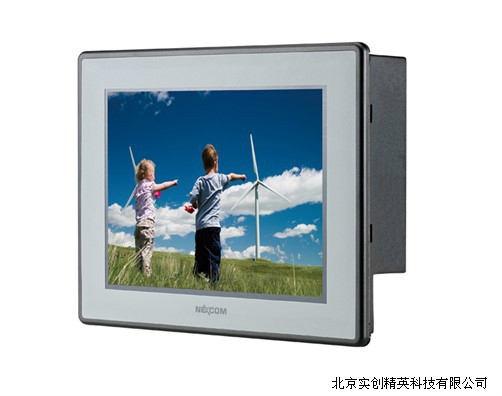

| 面板 |

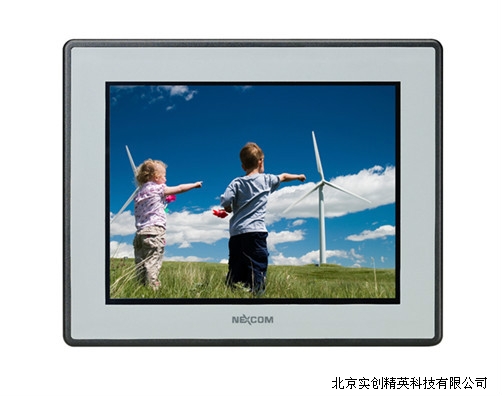

LCD size: 8”, 4:3
Resolution: SVGA 800 x 600
Luminance: 400cd/m2
Contrast ratio: 500
LCD color: 262K
Viewing angle: 50(U), 70(D), 70(L), 70(R)
Backlight: LED
|
| 触摸屏 |
5-wire resistive (flush panel type)
Touch light transmission: 82%
Touch interface: USB |
| 系统 |
CPU: On-board Intel® Atom™ dual core processor E3826, 1.46GHz, 1M L2 Cache
BIOS: AMI BIOS
System memory: 1x 204-pin DDR3L SO-DIMM socket, 2GB DDR3L (default), support up to 8GB DDR3L-1066/1333, non-ECC and unbuffered
Storage device:
- 1 x external locked CFast socket
- 1 x hard drive bay: optional 1x 2.5” SATA HDD or 1x SATA DOM
Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)
H/W status monitor: monitoring system temperature, and voltage
Expansion: 1x Mini-PCIe socket1 (support optional Wi-Fi, 3.5G module or fieldbus card) |

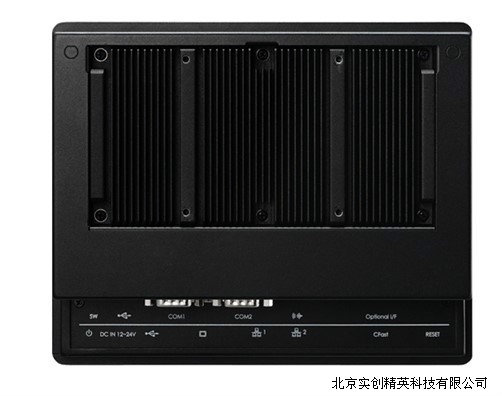

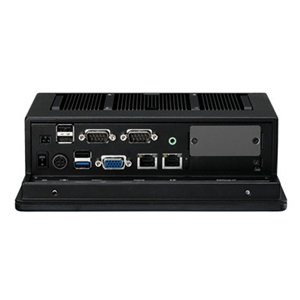

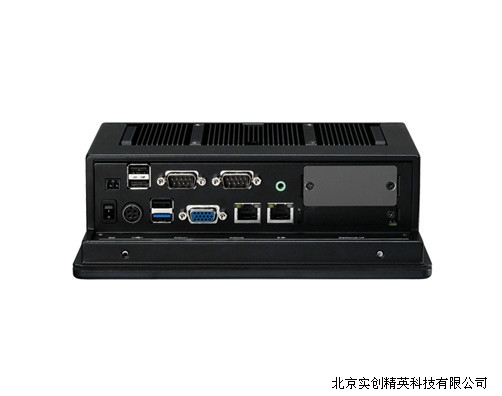

| 后置I/O |
Ethernet: 2x RJ45
2nd display VGA port: 1x DB15
Audio port: 1x Line out
USB: 3 x USB 2.0; 1 x USB 3.0
Power switch
Remote power switch
R eset button
COM #1: RS232/422/485
COM #2: RS232/422/485
Fieldbus: (protocol interface optional)
FBI90E-PNM: PROFINET Master, Dual RJ-45
FBI90E-EP: Ethernet/IP Master, Dual RJ-45
FBI90E-ECM: EtherCAT Master, Dual RJ-45
FBI90E-PBM: PROFIBUS Master, DB9
FBI90E-DNM: DeviceNet Master, 5-pins Phoenix Contact terminal |
| 音频 |
HD codec: realtek ALC886-GR
Audio interface: Line-out audio jack
|
| 以太网 |
LAN chip: dual Intel® I210AT Gigabit LAN
Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible |
| 机械构造 & 环境 |
Color: Pantone Black
IP protection: IP65 front
Mounting: panel/ wall/ stand/ VESA 75mm x 75mm
System with panel mounting kit w/o panel mounting hole
Power input: 12~30VDC
Power adapter: Optional AC to DC power adapter (+12V, 60W)
Vibration:
- IEC 68 2-64 (w/ HDD)
- 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating)
- 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating)
- 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)
Shock:
- IEC 68 2-27
- HDD: 20G@wall mount, half sine, 11ms
Operating temperature: -5°C to 50°C
Storage temperature: -20°C to 75°C
Operating humidity: 10%~90% relative humidity, non-condensing limits to be at 90% RH at max 50°C
Dimension: 217.4x176.4x68.9mm
Weight: 2.3Kg |
| 认证 |
CE approvalFCC Class A |
| OS Support Lists |
Windows 8 32bit/64bit
Windows 7 32bit/64bit
WinCE 7.0 |
