| 产品概述 |
Cooling System: Fanless
Enclosure: Aluminum die casting
Mounting: Support VESA 75/100, Panel and stand mounting
Three SMA Type antenna connectors of BT/Wi-Fi/WWAN
Power Input: 9 ~ 36VDC input with Ignition
Power Consumption: 26W typical
Ingress Protection: IP65
Dimension: 340mm (W) x 262mm (H) x 75.1mm (D) (13.38" x 10.31" x 2.96")
Weight: 3.5Kg, 7.72Lb
|
| LCD规格参数 |
12.1-inch TFT LCD panel with LED backlight
1024 x 768 pixels (XGA)
Brightness: 1300 cd/m² (typical)
Contrast ratio: 600:1 (typical) |
| 触摸屏 |
5-wire resistant touch
Anti-glare coating surface
Transmission rate: 81 ± 3%
|
| CPU & 芯片组 |
Intel® Core™ i7-2610UE
Intel® QM67 PCH chipset |
| 内存 |
One 204-pin DDR3 1333MHz SO-DIMM slot (up to 4GB) |
| 存储 |
1 x CFast
1 x 2.5" SATA SSD bay |
| 扩展槽 |
2 x mini-PCIe socket (PCIe + USB) for WLAN/mSATA option
1 x mini-PCIe socket (USB) x 1 for WWAN option
2 x OBDII module with J1939 for option |

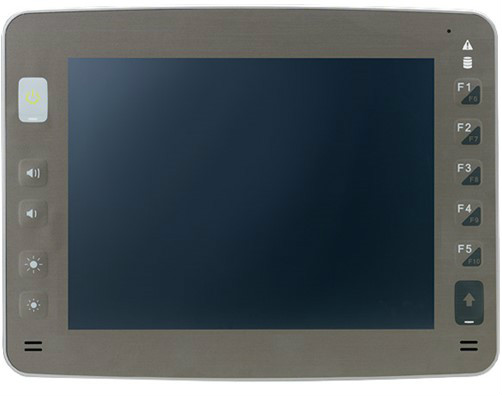

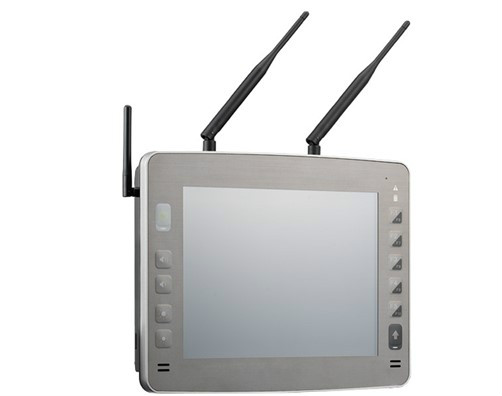

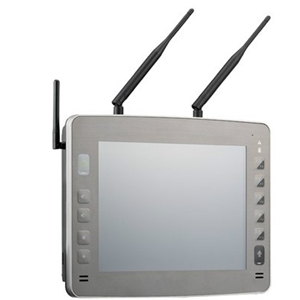

| 前面板 |
On screen display buttons x 5
Power on/off
Volume control (+/-)
Brightness control (+/-)
Light sensor
4 x LED indicators (Power on/off, Storage, Warning, Shift)
F1 ~ F10 functions key
2 x Built-in 2W speakers |

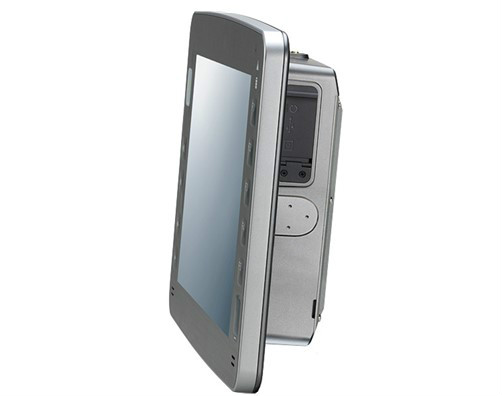

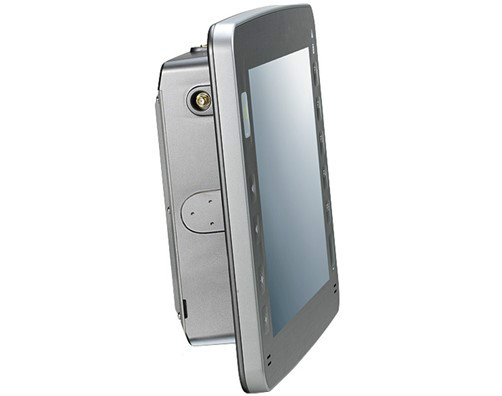

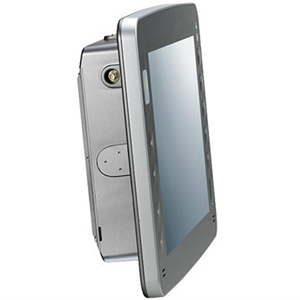

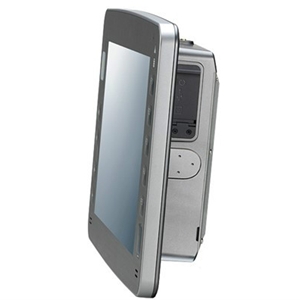

| 侧面 I/O接口 |
1 x CFast card slot
System reset button
USB 2.0 host type A connector |

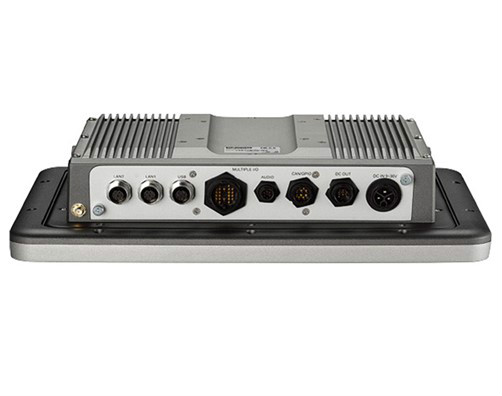

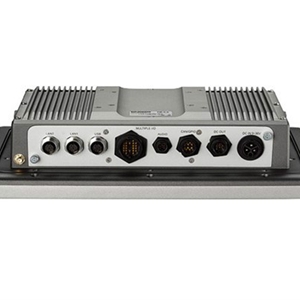

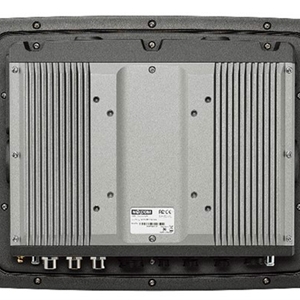

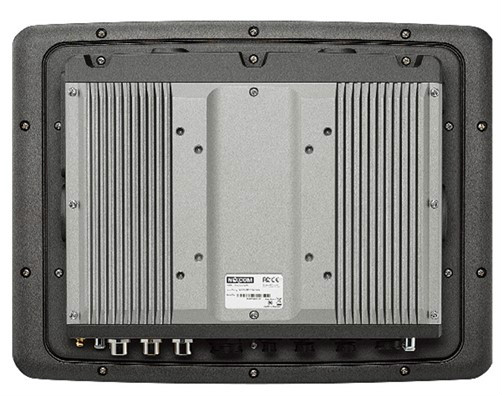

| 底部IO接口 |
1 x GPS Antenna SMA connector(On housing)
1 x Mic-in, 1 x Line out
2 x USB 2.0/Ethernet (Host)
2 x LAN interface for 10/100/1000Base-T
1 x 9 ~ 36V, 3-pin (Power, Ignition, Ground), 10A
1 x Circle Type 22-pin Multi-I/O Connector
1 x COM (optional RS-232/422/485; default RS-232)
1 x COM (RS-232 Tx/Rx)
1 x COM RS-232 (with either 0, 5 or 12V @ 600mA on pin9)
1 x Circle Type 10-pin CONN
1 x OBDII module (option)
2 x DI and 2 x DO
1 x Circle Type 6-pin CONN for 5V/12VDC-out |
| 通讯模块（选配） |
1 x u-blox NEO-M8N module (support GPS/Gloness/QZSS/Galileo/Beidou)
1 x WLAN and Bluetooth combo module for optional
1 x WWAN module for optional
|
| 电源管理 |
Selectable boot-up & shut-down voltage for low power protection
HW design ready for 8-level delay time on/off at user's self configuration
Power on/off ignition, software detectable
Support S4 suspend mode; wake on RTC/SMS |
| 运行环境 |
Operating temperatures: Ambient with air -30°C to 60°C
Storage temperatures: -30°C to 70°C
Relative humidity: 10% to 90% (non-condensing)
Vibration (random): 2g @5 ~ 500Hz
Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4
Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24
Shock
Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-trailers=20g
Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground equipment=75g |
| 操作系统 |
WES2009
WES 7E
Win7 Pro Embedded |
| 安规认证 |
CE approval, FCC Class B
CE EN 60950-1 LVD |
