| LCD规格参数 |
0.4-inch TFT LCD panel with LED backlight
1024 x 768 pixels (XGA)
Brightness: 1200 cd/m² (typical)
Viewing angle: 140° (H):120°(V)
Contrast ratio: 500:1 (typical) |
| 触摸屏 |
5-wire resistant touch
Anti-glare coating surface
Transmission rate: 81 ± 3% |
| CPU & 芯片组 |
Intel Atom® x5-E3930 processor dual core 1.8GHz |
| 内存 |
One 204-pin DDR3L 1600MHz SO-DIMM slot (Default: 2GB) |
| 存储 |
1 x CFast
1 x 2.5" SATA SSD bay |
| 扩展 |
1 x half-size mini-PCIe socket (PCIe + USB) for WLAN option
1 x full-size mini-PCIe socket (USB) x 1 for WWAN option
1 x M.2 key-E (PCIe + SDIO + UART + USB) for WLAN option
1 x SIM slot |

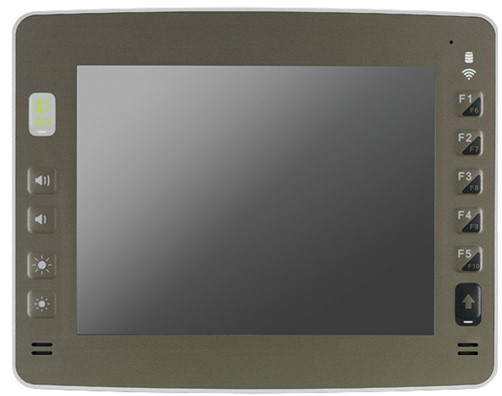

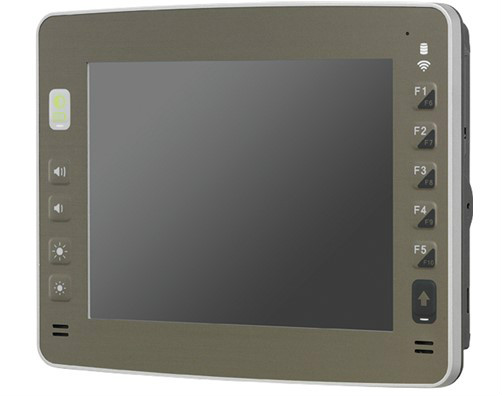

| 前面板 |
5 x on screen display buttons
Power on/off
Volume control (+/-)
Brightness control (+/-)
Light sensor
4 x LED indicators (power/battery charging, WLAN, shift, storage)
F1 ~ F10 programmable function keys
2 x Built-in 2W speakers |
| 侧面IO口 |
Right Side:
1 x CFast card slot
System reset button
USB 2.0 host type A connector
Left Side:
1 x antenna for WWAN |

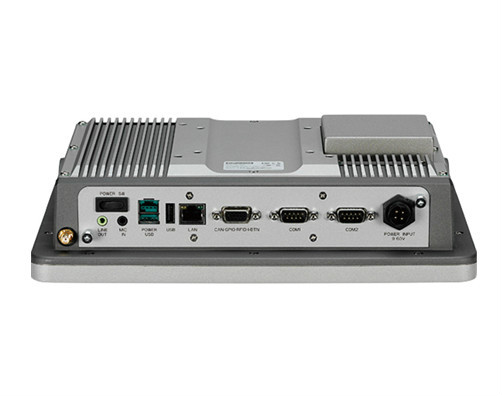

| 底部IO接口 |
1 x Power Switch (ATX mode)
Lockable power connector (power, ignition, ground)
2 x RS232 (full signals, RI, 0V, 5V/1.5A, 12V/1.5A)
1 x DB15
- 1 x Isolated CAN 2.0B
- 1 x iButton
- 1 x RFID (12V/1A. 5V/1A, 4pin)
- 1 x Optional RS232 Tx/Rx (share with GPS UART)
- 2 x GPI
Sink type: 5VDC TTL (default)
Source type: 3 ~ 28VDC
- 2 x GPO
Sink type: 5VDC TTL (default), max current: 20mA
Source type: 3 ~ 28VDC, max current: 150mA
1 x Powered USB (5V/1.5A, 12V/1.5A)
1 x USB Type A (5V/1A)
1 x Mic-in, 1 x Line-out
1 x Antenna for GPS |
| 顶部 |
2 x Antenna for Wi-Fi |

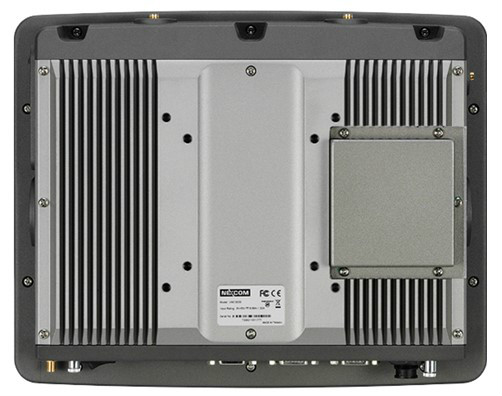

| 机械结构 |
Cooling system: Fanless
Enclosure: Aluminum die castig
Mounting: VESA 75/100 & desktop mounting
Ingress protection: front panel IP65
Dimension: 289.98mm (W) x 229.97mm (H) x 77.95mm (D), including battery
Weight: 3kg, 6.61lb |
| 电源管理 |
9V~60V DC in (UPS: 12V, 24V, 36V and 48V)
Reverse protection/over voltage protection/under voltage protection
Ignition On/Off control & programmable On/Off delay timing
Wake up by SMS, RTC and ignition |
| 操作系统 |
Windows 10
Linux: YOCTO (by request) |
| 运行环境 |
Operating temperatures: Ambient with air -30°C to 60°C
Storage temperatures: -30°C to 70°C
Relative humidity: 10% to 90% (non-condensing)
Vibration
Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4
Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24
Shock
Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and
semi-trailers= 20g
Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground
equipment= 75g |
| 安规认证 |
CE/FCC class B/E13 |
