| 产品概述 |
Cooling System: Fanless
Enclosure: Die-cast aluminum

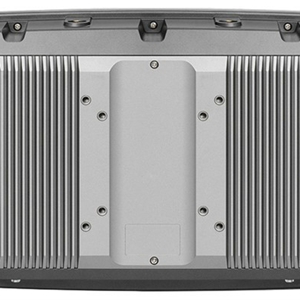

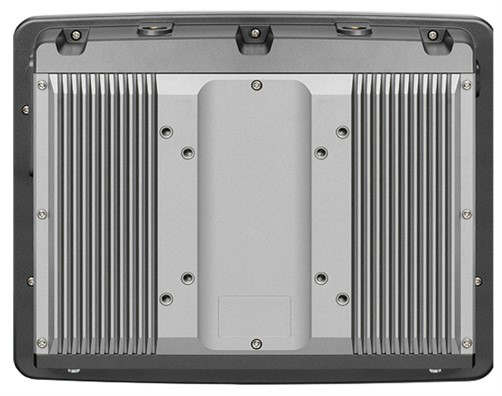

Mounting: Support VESA 75/100, Panel and stand mounting

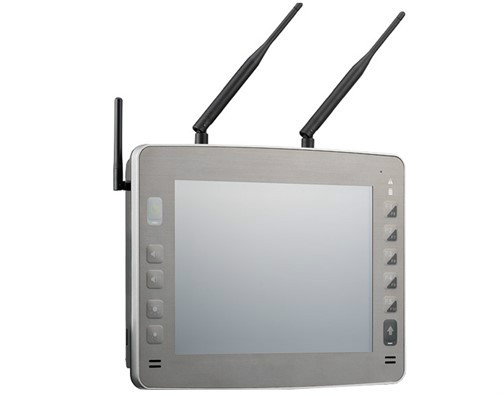

Three SMA Type antenna connectors of BT/ Wi-Fi/ WWAN
Power Input: 9~36VDC input with Ignition
Power Consumption: 26W typical
Ingress Protection : IP65 (VMC3000 only Front Panel IP65)
Dimension: 290mm (W) x 230mm (H) x 68mm (D)
(11.4" x 9" x 2.7")
Weight: 3Kg, 6.61Lb |
| LCD规格参数 |
0.4-inch TFT LCD panel with LED backlight
1024x 768 pixels (XGA)
Brightness: 400 cd/m² (typical)
Optional high brightness for sunlight-readable with 1200cd/m2
After touch screen is 1000cd/m2
Contrast ratio: 600:1 (typical) |
| 触摸屏 |
5-wire resistant touch
Anti-glare coating surface
Transmission rate: 81 ± 3% |
| CPU & 芯片组 |
Intel® Atom™ D2550 1.86GHz
Intel® ICH10R |
| 内存 |
On-board DDR3 2GB (up to 4GB) |
| 扩展存储 |
1 x CFast
1 x 2.5" SATA SSD bay |
| 扩展插槽 |
1 x Mini-PCIe socket (PCIe + USB) for WLAN option
1 x Mini-PCIe socket (USB) x 1 for WWAN option
1 x OBDII module with J1939 for option |

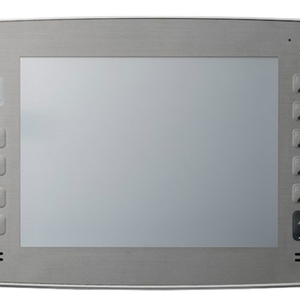

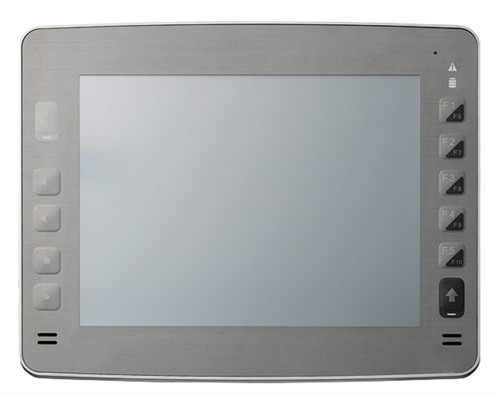

| 前面板 |
On screen display buttons x 5
Power on/off
Volume control (+/-)
Brightness control (+/-)
Light sensor
4 x LED indicators
(Power on/off, Storage, Warning, Shift)
F1~ F10 functions key
2 x Built-in 2W speakers |
| 侧面IO口 |
1 x CFast card slot
System reset button
USB 2.0 host type A connector |

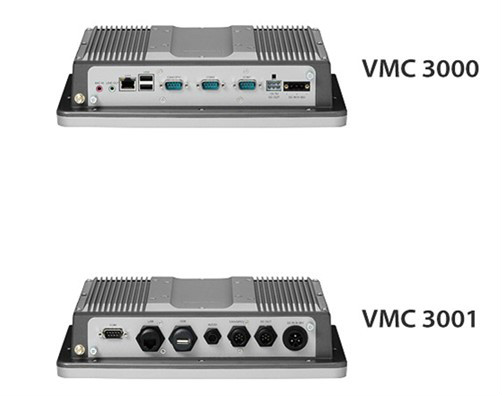

| VMC 3000 底部I/O界面 |
Power connector (power, ignition, ground)
1 x RS-232
1 x RS-232 with either 0, 5 or 12V on pin 9 for external devices
2 x USB 2.0 type A
1 x RJ45 10/100/1000Base-T
1 x Mic-in, 1 x Line-out
1 x 3GPI and 3GPO or CAN Bus with J1939 optional
Digital Input (source type; 0 ~ 30V)
Digital Output (sink type; 20mA max)
SMBus to support VTK 61B back up smart battery with charger
1 x SMA-type GPS antenna connector
1 x 6 pins for DC output (5V/1A & 12V/1A) |
| VMC 3001 底部I/O界面 (Waterproof) |
1 x SMA-type GPS antenna connector
1 x 3 pin for power input (power, ignition, ground)
1 x DB9 for full RS232
1 x 10/100/1000Base-T (Waterproof type RJ45)
1 x USB (Waterproof USB type A)
1 x 6 pins for Mic in, line out
1 x 10 pins for CAN Bus with J1939 optional, GPI x 3 and GPO x 3
1 x 6 pins for DC output (5V/1A & 12V/1A) |
| 通讯模块（选配） |
1 x GPS module
1 x WLAN and Bluetooth combo module for optional
1 x WWAN module for optional |
| 电源管理 |
Selectable boot-up & shut-down voltage for low power protection
HW design ready for 8-level delay time on/off at user's self configuration
Power on/off ignition, software detectable
Support S4 suspend mode; wake on RTC/ SMS/ LAN |
| 操作系统 |
WES2009
WES 7E
Win7 Pro Embedded |
| 运行环境 |
Operating temperatures ambient with air: -30°C to 60°C
Storage temperatures: -30°C to 70°C
Relative humidity: 10% to 90% (non-condensing)
Vibration (random): 2g @5~500Hz
Vibration
Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4
Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24
Shock
Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks andsemi-trailers= 20g
Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, groundequipment= 75g |
| 安规认证 |
CE
FCC Class B |
