| CPU |
CPU: Intel® Celeron® processor J1900
Core number: 4
Max speed: 2.0GHz
L3 cache: 2MB
Chipset: N/A
BIOS: UEFI |
| 内存 |
dual channel DDR3L 1333 MHz SDRAM
Max.: 8GB
Socket: 2 x SO-DIMM |
| 显示 |
Controller: Intel® Gen7 Intel® graphics DX 11*, OGL3.2
VRAM: shared memory
VGA: supports max. resolution 1920 x 1200
LVDS: dual channel 24-bit, max resolution 1920 x 1200@60Hz
HDMI: supports HDMI 1.3a, max resolution 1920 x 1200 |
| 扩展槽 |
mini-PCIe: 1 (full size)
mSATA: 1
Support PCI ：2 |
| 以太网 |
Ethernet: 10/100/1000 Mbps
Controller: GbE LAN: 2 x Realtek RTL8111G-CG
Connector: 2 x RJ-45 |
| 后面板接口 |
Max. data transfer rate: SATA2 (3.0 Gb/s)

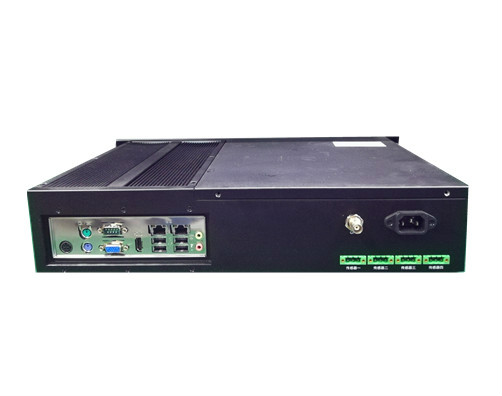

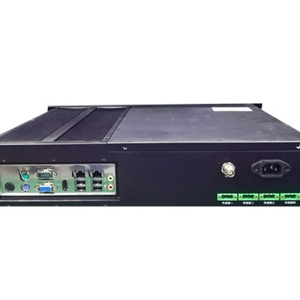

Rear I/O
VGA: 1
HDMI: 1
Ethernet: 2
USB: 4 (2 x USB 3.0, 2 x USB 2.0)
Audio: 2 (Mic-in, Line-out)
Serial: 3 (RS-232/422/485)
PS2: 2 (1 x keyboard, 1 x mouse) |
| 内部接口 |
USB: 6 (2 x USB 3.0, 4 x USB 2.0)
LVDS/inverter: 1/1
VGA: 1 (shared with rear I/O VGA COM)
Serial: 2 (RS-232)
SATA: 2 x SATA2 (3.0Gb/s)
mPCIe: 1
Parallel: 1
mSATA: 1 (shared)
GPIO 8-bit: 4 x GPI + 4 x GPO
SATA PWR output con: 1
Speaker header: 1 |
| 看门狗 |
Output: from super I/O to drag RESETCON#
Interval: 256 segments, 0,1,2…255sec/min |
| 供电&电压范围 |
可选:
AC-220V,DC-24V,DC-110V,DC-12V外部供电
Power on: AT/ATX supported
AT: directly PWR on as power input ready
ATX: press button to PWR on after power input ready
|
| 结构尺寸 |
外观尺寸 430mm（W）X 285mm(D) X 88.3mm(H)(With Mount Kit 480m(W))
工作温度 -20°C ~ 65°C
存储温度 -40°C ~ 85°C
相对湿度 10% ～ 90%（不凝露）
冲击 20G 正弦曲线 11s冲击实验
震动 0.5Grms @5~500 Hz according to IEC68-2-64 |
