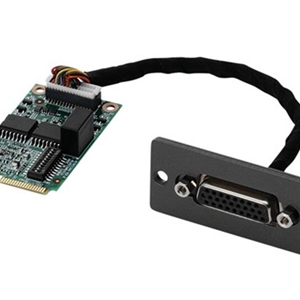

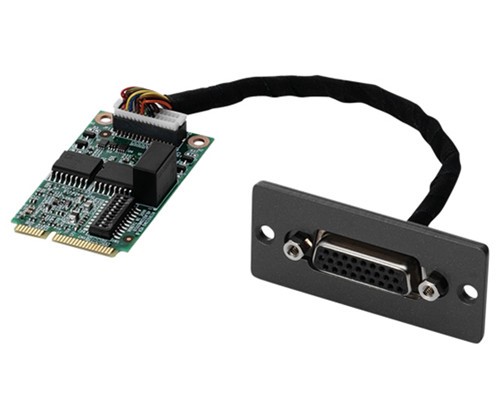

NISC-4248

主要特点
  • Mini-PCIe 高速PCIe x1总接线接口
  • 4路高速RS-232/422/485可设置，速度可达25Mbps
  • 紧凑的DB26 连接器，适用于嵌入式工业设备上使用
  • 2.5KV电隔离4个端口
    • 产品规格 订购信息 文件下载
    总线接口 Expansion bus interface PCIe 2.0 Gen 1 Compliant

    PCIe x1 Link, Dual Simplex, 2.5Gbps in each direction

    Data read/write 32-bit operation

    硬件参数 Support four independent UART channels controlled with
    -- 16550 compatible register Set
    -- 256-byte TX and RX FIFOs
    -- Programmable TX and RX Trigger Levels
    -- TX/RX FIFO Level Counters
    -- Fractional baud rate generator
    -- Automatic RTS/CTS or DTR/DSR hardware
    --flow control with programmable hysteresis with programmable turn-around delay
    环境要求

    Environment Operating Temperature: 0°C to 70°C

    Storage Temperature: -20°C to 75°C

    支持操作系统

    Windows XP 32bits and 64bits

    Windows 7 32bits and 64bits

    结构尺寸

    30mm (W) x 51mm (L) x 10mm (H)

    At least 20mm height for installation
