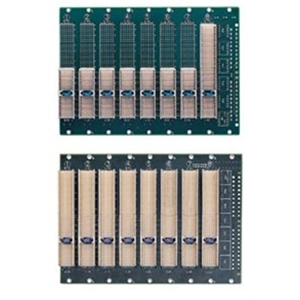

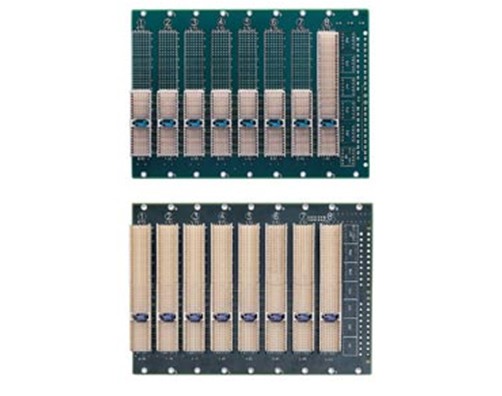

PICMG 2.0 CompactPCI Specification Rev. 2.1 compliant
-
Numbers of slot: 8/6/4 slots (incl. system slot)
-
Width: cBP-3208R: 36HP (9-slot) cBP-3206R: 28HP (7-slot) cBP-3204R: 20HP (5-slot)
-
Right one slot is system slot and others are peripheral slots
-
10-layer PCB for accurate impedance control and electronic noise immunity
-
Two ATX sockets with DC screw terminals
-
32-bit PCI bus on P1, support 7 bus-mastering I/O slots
-
P2 is for rear I/O (available on cBP-3208R, 3206R, 3204R)
|
