| Enclosure |

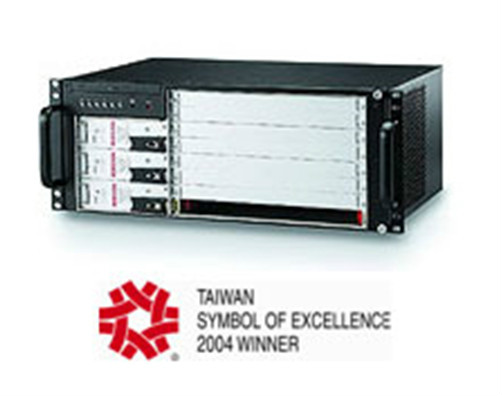

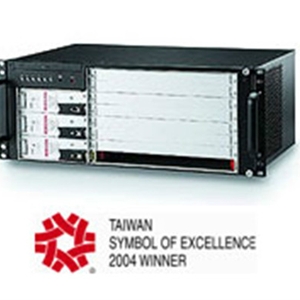

EIA RS-310C 19” 4U high rackmount enclosure
Coated metal plate outer covering
|
| CompactPCI® Standards |
2.0 R3.0, 2.1 R2.0, 2.5 R1.0 |
| Form Factor |
6U CompactPCI® |
| Backplane |
cBP-6418U: 8-slot 64-bit 6U cPCI CT bus backplane |
| Power Supply |
Supports up to three in-rack 3U cPCI 8HP power modules
Supports current sharing on 5 V, 3.3 V, and 12 V
PICMG® 2.11 47-pin power interface
Power module: cPS-H325/AC (250 W each x3 redundant)
cPS-H325/48 (DC48V 250 W redundant each)
|
| Basic Alarm Module |
Monitoring inner chassis temperature, fan status
Abnormal status will generate alarm and LED warning
Alarm reset
LEDs indicate status of 5 V, 3.3 V, 12 V and 12 V
|
| Cooling System |
Removable left exhaust fan
Tontal fans: One
Fan type: DC brushless motor
Rated voltage: 12 V
Dimensions: 120 x 120 x 25 (mm, W x H x D)
Maximum Air flow: 150 CFM
Rated speed for each fan: 4000 ±250 RPM
Rated power for each fan: 17.4 W
Exhaust fan on rear panel:
Total fans: One
Fan type: DC brushless motor
Rated voltage: 12 V
Dimensions: 92 x 92 x 38 (mm,W x H x D)
Rated speed for each fan: 4800 ±250 RPM
Rated power for each fan: 12 W
|
| Cooling System |
Hot-swappable right side intake fans: (2+2 fans)
Total fans: Four
Fan type: DC brushless motor
Rated voltage: 12 V
Dimensions: 80 x 80 x 15 (mm,W x H x D)
Maximum Air flow: 42.73 CFM
Rated speed for each fan: 4000 ±100 RPM
Rated power for each fan: 3.24 W
|
| Drive Bay |
One slim type optical drive |
| Dimensions |
482.6 x 177 x 346.35 (mm, W x H x D, w/ handle) |
| Weight |
14.5 kg/31.9 lbs (including 250 W redundant power supply
and backplane |
| Operating Temp. |
0˚C to 50˚C |
| Storage Temp |
20˚C to 80˚C |
| Humidity |
5% to 95%, non-condensing |
| Shock |
15 G peak-to-peak, 11 ms duration, non-operation |
| Vibration |
Non-operation: 1.88 Grms, 5-500 Hz, each axis
Operation: 0.5 Grms, 5-500 Hz, each axis, tested with
2.5” HDD
|
| NEBS |
Designed for NEBS Level 3 |
