| Enclosure |

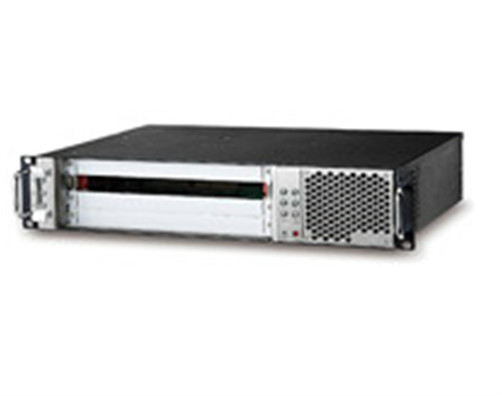

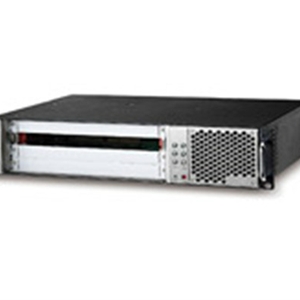

EIA RS-310C 19” 2U high Rackmount enclosure
Coated metal plate outer covering
Guarded power switch and alarm reset button
|
| CompactPCI® Standards |
2.0 R3.0, 2.1 R2.0, 2.5 R1.0 |
| Form Factor |
6U CompactPCI® with 80 mm depth rear I/O |
| Backplane |
cBP-6103R: 3-slot 32-bit 6U cPCI CT bus backplane
cBP-6403R: 3-slot 64-bit 6U cPCI CT bus backplane
cBP-6403R/N110: 3-slot 64-bit 6U cPCI without CT bus
backplane
|
| Power Supply |
300 W +300 W dual AC-input mini redundant power supplies
with cooling fan
Active PFC (full range), meets IEC-1000-3-2 CLASS D
Dual-AC inlet with EMI noise filter: FCC Class B, CISPR22
Class B
Cooling Two 40 mm DC fans per module
AC Input Full Range, 100~220 VAC (±10%)
Frequency Range: 47-63 Hz
DC Output 32 A @ +5 V, 20 A @ +3.3 V, 16 A @ +12 V,
0.8 A @ -12 V, 0.5 A @ -5 V, 1.5 A @ +5 Vsb
Maximum Total Output for +5 V and +3.3 V: 35 A
Maximum Total Output for +5 V, +3.3 V and
+12 V: 285 W
Efficiency: 63% at 115 V, full load
Temperature Operating 0˚C to 40˚C, Storage -20˚C to 80˚C
Range
Certifications UL 1950, CSA 22.2 NO/ 950, TÜV IEC 950
Dimensions 220 x 120 x 85 (mm, H x W x D)
|
| LED Indicators |
Six LEDs indicate power voltage status on +3.3 V, +5 V,
+12 V and -12 V, fan status and temperature alarm
|
| Cooling System |
Front access hot swappable fan tray with three fan modules
for exhaust
• Fan type: 12 V DC brushless
• Rated speed: 4000 RPM
• Rated current: 0.22 A (Max 0.33 A)
• Max air flow: 48.2 CFM
• Acoustical noise: 41 dBA
• MTBF: 70,000hrs
• Three LEDs indicate fan status
|
| Dimensions |
484.1 x 88.1 x 358.8 (mm, W x H x D, w/ handle) |
| Weight |
17.1 kg/38 lbs |
| Operating Temp. |
0˚C to 40˚C |
| Storage Temp. |
-20˚C to 80˚C |
| Humidity |
5% to 95%, non-condensing |
| Shock |
15 G peak to peak, 11 ms duration, non-operation |
| Vibration |
Non-operation: 1.88 Grms, 5-500 Hz,each axis
Operation: 0.50Grms, 5-500Hz, each axis, tested with
2.5” HDD
|
