| CPU |
μFC-BGA quad-core Intel® Core™ i7-2715QE Processor 2.1GHz (Turbo boost to
3.0GHz), 6MB LLC cache, 45W TDP
μFC-BGA dual-core Intel® Core™ i7-2655LE Processor 2.2GHz (Turbo boost to
2.9GHz), 4MB LLC cache, 25W TDP
μFC-BGA dual-core Intel® Core™ i7-2610UE Processor 1.5GHz (Turbo boost to
2.4GHz), 4MB LLC cache, 17W TDP
Supports Intel® Hyper-Threading and Turbo Boost Technology
|
| Chipset |
Intel® QM67 PCH |
| Memory |
Dual channel DDR3-1067/1333 SDRAM with ECC via two SODIMM sockets,
up to 16GB capacity (dependent on availability of memory modules)
|
| BIOS |
AMI EFI BIOS, 64Mbit SPI flash memory |
| CompactPCI Bus |
PCI 32-bit/33 MHz, 3.3V or 5V universal V(I/O)
Supports operation in system slot as master or in peripheral slot as standalone
blade without connectivity to CompactPCI bus (Satellite mode)
|
| PICMG Standards |
PICMG 2.0 CompactPCI R3.0
PICMG 2.1 Hot Swap R2.0
PICMG 2.9 System Management R1.0
|
| PMC/XMC |
One optional PCI 32-bit/66 MHz PMC site or PCI-Express x1 XMC site on 2nd
or 3rd layer
|
| Ethernet |
Four PCIe Intel® 82574L Gigabit Ethernet controllers on SBC for four
10/100/1000BASE-T ports on front panel
RTM cPCI-R3P00: two GbE on I/O panel switched from SBC
RTM cPCI-R3P00T: two GbE on I/O panel from onboard Intel® 82580DB GbE
controller
|
| Graphics |
Integrated in Intel® processor, 3D engine
DB-15 VGA port on front panel, switchable to rear, supports up to QXGA
2048x1536 pixels @75Hz, 32-bits
Two DisplayPorts on front panel, support up to 2560×1600 pixels @60Hz; DVI,
VGA and HDMI interfaces available by adapter cable (cPCI-3970G only)
Dual independent display
|
| Serial Port |
Up to four serial ports
One RS-232/422/485 port on front panel
One RS-232/422/485 10-pin header on DB-3970L2
Two serial ports on rear panel: one with Tx, Rx signal only,
one converted from USB port supporting RS-232/422/485
|
| PS/2 |
Front panel PS/2 Keyboard Mouse port (8/12 HP version only) |
| USB |
Up to four USB 2.0 front panel ports
Three USB ports to rear, two on RTM panel
|
| Audio |
Line-in and Line-out ports on front panel (cPCI-3970D only) |
| Storage Blade |
One SATA 6 Gb/s direct connector for 2.5” onboard HDD
(8HP & 12HP version only)
CompactFlash socket
Optional CFast socket (site shared with CF adapter board)
|
| RTM |
Three 7-pin SATA signal connectors
Supports SATA RAID 0/1/5/10
|
| Operating System OS |
Microsoft Windows XP Professional
Microsoft Windows 7, 64bit version
Red Hat Enterprise Linux 6 32/64-bit
Fedora 14
Wind River VxWorks 6.8, 6.9
|
| LED |
Power (green/red), WDT (amber), HDD (blue), Overheat (red) |
| Battery |
Coin cell lithium battery onboard for RTC CMOS RAM |
| Watchdog Timer |
System Reset and NMI, with programmable interval,
1-65535 sec or 1-65535 minutes
|
| Hardware Monitor |
Monitors CPU temperature, system temperature, and DC voltages by IPMI |
| TPM |
Infineon SLB 9635 TT1.2 (optional by request) |
| Form Factor |

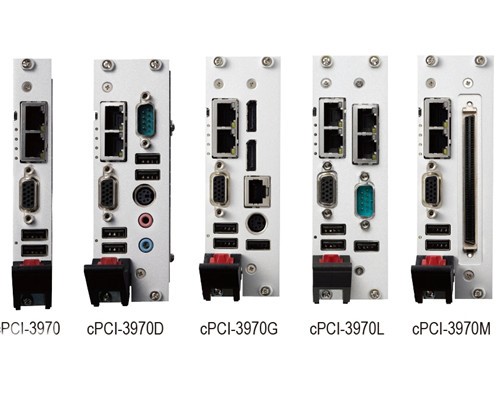

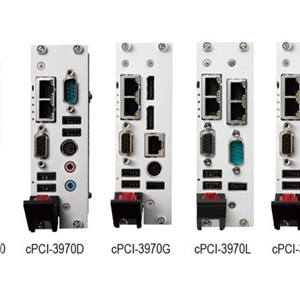

3U 4HP/8HP/12HP CompactPCI
100mm x 160mm (LxW)
|
| Operating Temperature |
0°C to +60°C
-20°C to +70°C extended temperature (cPCI-ET3970, CPUs with TDP 25W or
lower)
-40°C to +80°C extreme extended temperature
(cPCI-EX3970, Core i7-2610UE only)
|
| Storage Temperature |
-40°C to +85°C |
| Rel. Humidity |
95% non-condensing |
| Shock |
20g peak-to-peak, 11ms duration, non-operating |
| Vibration |
2g random vibration, 5 to 500Hz in 3 axes, operating
Power Consumption Core i7-2655LE, 4GB DDR3-1333 SODIMM under
Windows XP with 100% CPU loading:
0.71A@3.3V, 6.97A@5V, total 37.2W
|
| Weight |
Net weight 389g with heatsink |
| Certifications |
CE/FCC |
