| 支持CPU |
Support 6th generation Intel® Core™ i5-6500TE, Quad Core, 2.3GHz, 6M CacheSupport 6th generation Intel® Core™ i7/i5/i3 LGA socket type processors
- Core™ i7-6700TE, Quad Core, 2.4GHz, 8M Cache (maximum frequency 3.4GHz if turbo boost enabled)
- Core™ i5-6500TE, Quad Core, 2.3GHz, 6M Cache (maximum frequency 3.3GHz if turbo boost enabled)
- Core™ i3-6100TE, Quad Core, 2.7GHz, 4M Cache (no turbo boost)
- Pentium G4400TE, Dual Core, 2.4GHz, 3M Cache (no turbo boost)
- Celeron® G3900TE, Dual Core, 2.3GHz, 2M Cache (no turbo boost) |
| 内存 |
1 x 4GB DDR4 SO-DIMM2 x DDR4 SO-DIMM socket, supports 2133MHz and up to 8GB with un-buffered and non-ECC type |
| 显示 |
Dual independent display
-HDMI + DVI-D
|

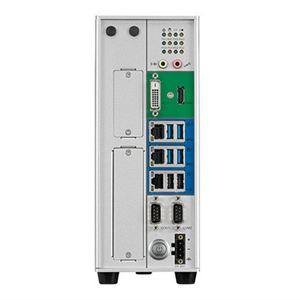

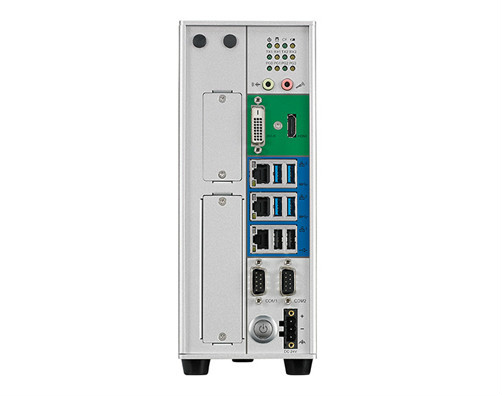

| 前面板I/O 接口 |
1 x ATX power on/off switch
1 x HDMI and 1 x DVI-D
4 x USB 3.0 ports (900mA per each)
2 x USB 2.0 ports (500mA per each)
1 x Line-out and 1 x Mic-in
2 x Antenna holes for WI-FI/ GSM
1 x Front access 2.5" HDD tray
1 x Mini-PCIe expansion support optional modules
2 x RS232/422/485 auto with 2.5KV Isolation
3 x Intel® I210IT GbE LAN ports, support WoL, teaming and PXE
|
| 顶部 I/O 接口 |
1 x 3-pin remote switch
1 x CFast expansion
1 x SIM card
|
| 储存设备 |
1 x CFast (SATA 3.0)
1 x 2.5" HDD (external, SATA 3.0)
1 x 2.5" HDD (internal, SATA 3.0)
1 x mSATA (via internal Mini-PCIe socket)
|
| 扩展槽 |
2 x mini-PCIe socket for optional Wi-Fi/3.5G/4G LTE/Fieldbus modules |
| 电源 |
AT/ ATX power mode (default with ATX power mode)
Power input: typical +24VDC +/- 20%, with reverse polarity protection
Power adapter: optional AC to DC power adapter (+24VDC, 120W)
|
| 尺寸 |
90 mm(W) x 185mm (D) x 251mm (H) |
| 结构 |
Aluminum and metal chassis with front access design |
| 工作环境 |
Operating temperature: Ambient with air flow: -5°C to 55°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage temperature: -20°C to 85°C
Relative humidity: 10% to 93% (non-condensing)
Shock protection:
-HDD: 20G, half sine, 11ms, IEC60068-27
-CFast: 50G, half sine, 11ms, IEC60068-27
Vibration protection w/HDD condition:
-Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
-Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-64
|
| 认证 |
CE approval
-EN61000-6-2
-EN61000-6-4
FCC Class A
LVD
|
