| 面板 |
LCD size: 15.6”, 16:9
Resolution: WXGA 1366 x 768
Luminance: 300cd/m2
Contrast ratio: 500
LCD color: 16.7M
Viewing angle: 80 (U), 80 (D), 85 (L), 85 (R)
Backlight: LED
|
| 触摸 |
Ten points P-Cap (projected capacitive touch)
Touch light transmission: 87%
Anti-scratch surface: 7H hardness
Touch interface: USB
|

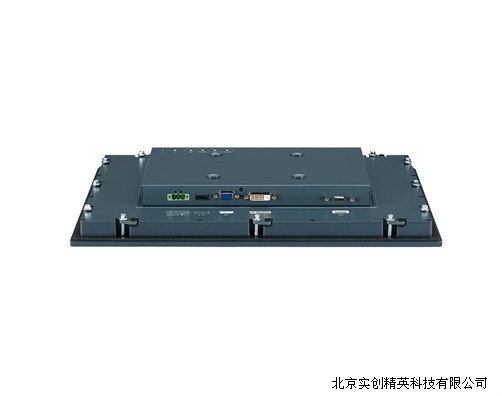

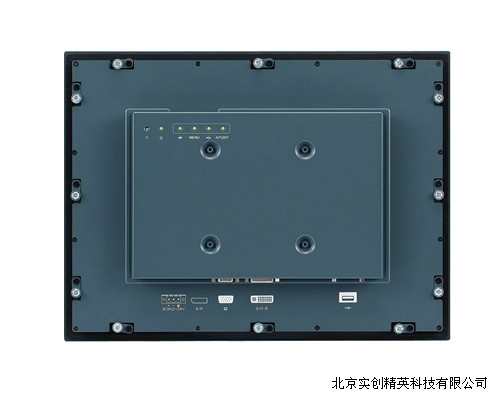

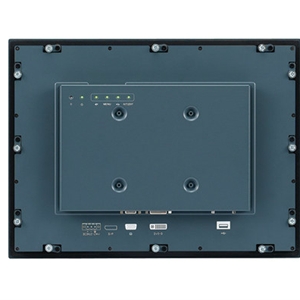

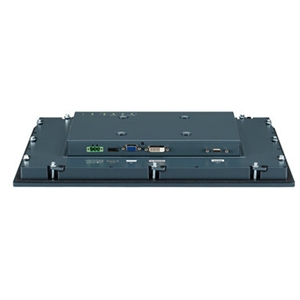

| 后置I/O |
Touch interface port: USB with Lock
Video port: VGA (1xDB15)/DVI-D (1xDVI-D connector)/Display port
DC power input connector: 3-Pin Phoenix terminal Blocks
|
| OSD功能 |
OSD keypad
Multilanguage OSD
|
| 机械构造和环境 |
Color: Pantone 432C/RAL 70 24 front bezel
IP protection: IP66 front
Mounting: panel/wall/stand/VESA 100mm x 100mm
System with panel mounting kit w/o panel mounting hole
Power input: 12~24VDC
Power adapter: optional AC to DC power adapter (+12V, 60W)
Vibration:
- IEC 68 2-64
- 2Grms @ sine, 5~500Hz, 1hr/axis (operating)
- 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)
Shock:
- IEC 68 2-27
- HDD: 20G@wall mount, half sine, 11ms
Operating temperature: -10°C to 60°C
Storage temperature: -20°C to 75°C
Operating humidity: 10%~90% relative humidity, non-condensing
Dimension: 417.4 x 312.4 x 51.75mm
Weight: 5.48Kg
|
| 认证 |
CE (including EN61000-6-1/EN61000-6-2/EN61000-6-3/EN61000-6-4)
FCC Class B
|
