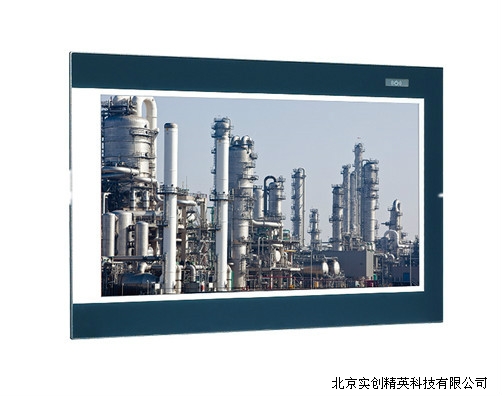

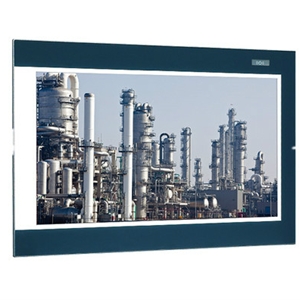

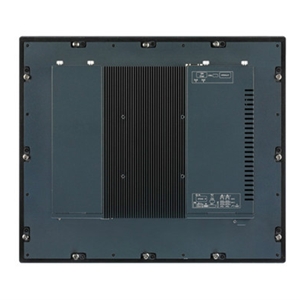

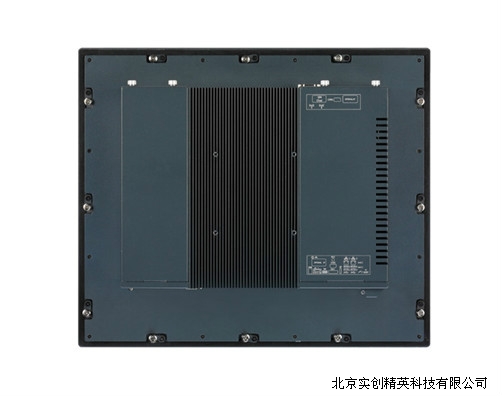

| 面板 |
LCD size: 17", 4:3
Resolution: SXGA 1280 x 1024
Luminance: 350cd/m²
Contrast ratio: 1000
LCD color: 16.7M
Viewing angle: 80 (U), 80 (D), 85 (L), 85 (R)
Backlight: LED
|
| 触摸 |
For IPPC A1770T series
- 5-wire resistive (flush panel type)
- Light transmission: 81%
- Interface: USB
For IPPC A1770P series
- Five Points P-Cap (Projected Capacitive Touch)
- Light transmission: 87%
- Interface: USB
- Anti-scratch surface: 7H hardness
|
| 系统 |
CPU (optional): support 4th gen. Intel® Core™ i processor family, LGA1150 socket type
- Core™ i5-4590T, Quad Core, 2.0GHz, 6M Cache (maximum frequency 3.0GHz if turbo boost enabled )
- Core™ i5-4570TE, Dual Core, 2.7GHz, 4M Cache (maximum frequency 3.3GHz if turbo boost enabled )
- Core™ i3-4350T, Dual Core, 3.1GHz, 4M Cache (no turbo boost)
- Core™ i3-4340TE, Dual, Core, 2.6GHz, 4M Cache (no turbo boost)
- Pentium® G3320TE, Dual Core, 2.3GHz, 3M Cache (no turbo boost)
- Celeron® G1820TE, Dual Core, 2.2GHz, 2M Cache (no turbo boost)
BIOS: AMI BIOS
System chipset: Intel® Q87 PCH
System memory (optional): 2 x 204-pin DDR3/DDR3L SO-DIMM socket, support up to 16GB DDR3/ DDR3L 1333/1600, non-ECC and unbuffered
Storage device:
- 1 x External locked CFast socket
- 1 x mini-PCIe w/o SIM card holder slot to support mSATA storage
- 1 x Hard drive bay: support 1 x 2.5" SATA HDD/SSD (optional) (for DC model only)
- 2 x Hard drive bay: support 2 x 2.5" SATA HDD/SSD (optional) RAID 0, 1 (for AC model only)
Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)
H/W status monitor: monitoring system temperature and voltage
Expansion:
- 2 x mini-PCIe sockets (support optional Wi-Fi or 3.5G module/ NVRAM/mSATA storage)
- 2 x Expansion slots for add-on PCI or/and PCIe cards (optional)
- 1 x PCI and 1 x PCIe x4 slots
- 2 x PCIe x4 slots
- 2 x PCI slots
- 1 x PCIe x16 slot
1 x Front accessible USB 2.0
Panel backlight control button: increase brightness/decrease brightness/backlight on/off (for AC model only)
|

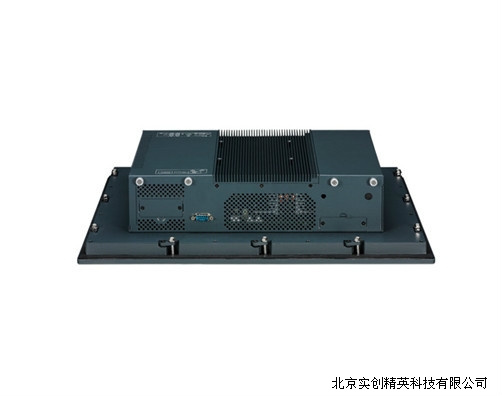

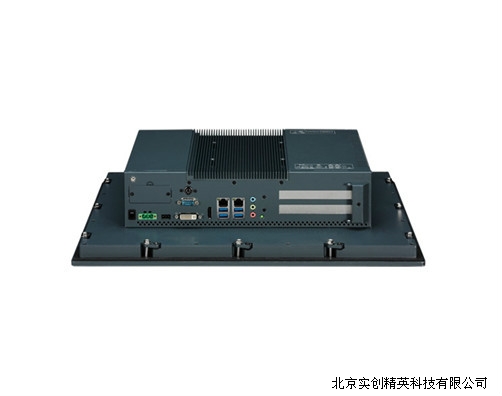

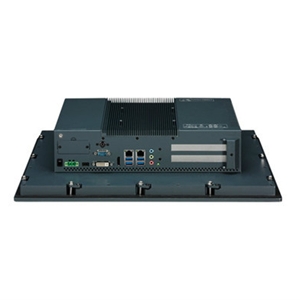

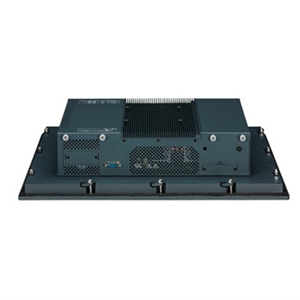

| 后面板I/O |
1 x PS2 for keyboard/mouse
Ethernet: 2 x RJ45
2nd/3rd display: additional independent DisplayPort: 1 x DVI-I (DVI-D + DVI-A) and 1 x DisplayPort
Audio port: 1 x Line-out; 1 x Line-in; 1 x MIic-in
USB: 4 x USB3.0
3-pin remote power on/off switch connector
Reset button
COM#1: RS232/422/485 w/ 5V or 12V selection (for T/P-DC only)
ATX power switch (for T/P-DC only)
COM#1: RS232/422/485 w/ 2.5kv isolated protection (for T/P-AC only)
AC power switch (for T/P-AC only)
|
| Top I/O |
COM#2 RS232/422/485 w/ 5V or 12V selection (for T/P-DC only)
COM#2: RS232/422/485 w/ 2.5kv isolated protection (for T/P-AC only)
DIO w/ 2.5kv isolated protection (for T/P-AC only):
- 4 x Digital input (source type)
- 4 x Digital output (sink type)
GPIO: 4 x Digital-in/4 x Digital-out (for T/P-AC only)
|
| 音频 |
HD Codec: Realtek ALC886-GR
Audio interface: Line-out/Line-in/MIC-in audio Jack
|
| 以太网 |
LAN chip: dual Intel® I210IT Gigabit LAN
Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible
|
| 现场总线 |
Support up to two Fieldbus Module |
| 机械构造和环境 |
Color: pantone 432C\ RAL 70 24 front bezel
Enclosure: aluminum front bezel with SPPC nickel plated housing
IP protection: IP66 front
Mounting: panel/wall/stand/VESA 100mm x 100mm
Power
IPPC A1770TE2-DC/IPPC A1770PE2-DC
- Power input: 12~30 VDC
- Power connector: 3-pin phoenix connector
IPPC A1770TE2-AC/IPPC A1770PE2-AC
- Power input: 100-240V~, 1.5A, 50-60Hz; Fuse: 250VAC/3A
- Power connector: AC inlet (IEC60320 C14)
- Power supply: 120W
Vibration:
- IEC 68 2-64 (w/ HDD)
- 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating)
- 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating)
- 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)
Shock:
- IEC 68 2-27
- HDD: 20G @ wall mount, half sine, 11ms
Operating temperature:
Resistive: -10°C to 50°C
P-Cap: -20°C to 50°C
Storage temperature: -20°C to 75°C
Operating humidity: 10%~90% relative humidity, non-condensing (for IPPC A1770T series, limits to be at 90% RH at max 50°C)
Dimension:
- IPPC A1770TE2-DC/IPPC A1770PE2-DC/IPPC A1770TFE2-DC: 451mm x 375.5mm x 105mm
- IPPC A1770TE2-AC/IPPC A1770PE2-AC: 451mm x 375.5mm x 92.9mm
Weight: (Barebone)
IPPC A1770TE2-DC: 9.54kg
IPPC A1770PE2-DC: 9.6kg
IPPC A1770TE2-AC: 10.45kg
IPPC A1770PE2-AC: 10.51kg
|
| 认证 |
CE (including EN61000-6-2/EN61000-6-4)
FCC Class A
|
| OS Support Lists |
Windows 7 32bits and 64bits
Windows 8.1 32 bits and 64 bits
|
