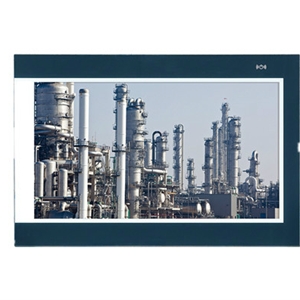

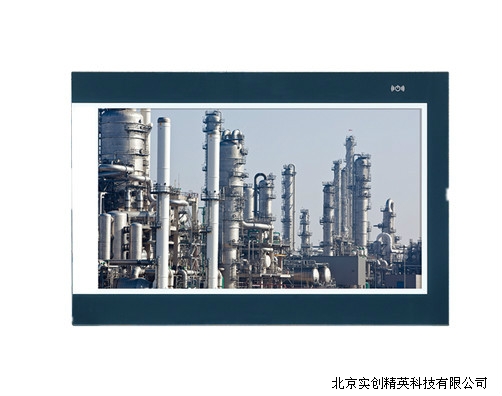

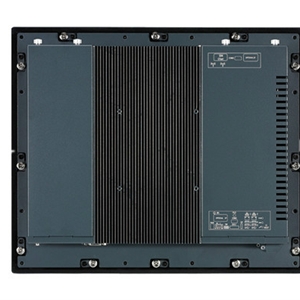

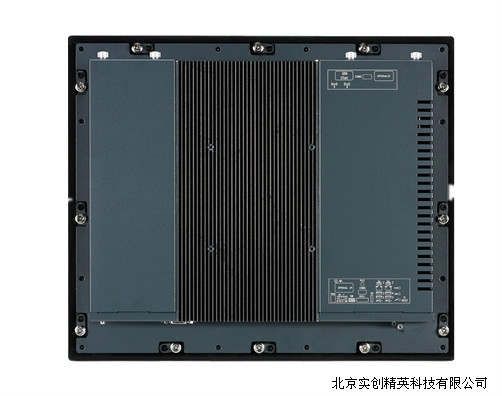

| Panel |
LCD Size: 15", 4:3
Resolution: XGA 1024 x 768
Luminance: 450cd/m²
Contrast ratio: 800
LCD color: 16.2M
Viewing angle: 70 (U), 80 (D), 80 (L), 80 (R)
Backlight: LED
|
| Touch |
For IPPC A1570T Series
- 5-wire resistive (flush panel type)
- Light transmission: 81%
- Interface: USB
For IPPC A1570P Series
- Ten points P-Cap (projected capacitive touch)
- Light transmission: 87%
- Interface: USB
- Anti-scratch surface: >= 6H hardness
|
| System |
CPU (optional): support 4th gen. Intel® Core™ i processor family, LGA1150 socket type
- Core™ i5-4590T, Quad Core, 2.0GHz, 6M Cache (maximum frequency 3.0GHz if turbo boost enabled)
- Core™ i5-4570TE, Dual Core, 2.7GHz, 4M Cache (maximum frequency 3.3GHz if turbo boost enabled)
- Core™ i3-4350T, Dual Core, 3.1GHz, 4M Cache (no turbo boost)
- Core™ i3-4340TE, Dual, Core, 2.6GHz, 4M Cache (no turbo boost)
- Pentium® G3320TE, Dual Core, 2.3GHz, 3M Cache (no turbo boost)
- Celeron® G1820TE, Dual Core, 2.2GHz, 2M Cache (no turbo boost)
BIOS: AMI BIOS
System chipset: Intel® Q87 PCH
System memory (optional): 2 x 204-pin DDR3/DDR3L SO-DIMM socket, support up to 16GB DDR3/ DDR3L 1333/1600, non-ECC and unbuffered
Storage device:
- 1 x External locked CFast socket
- 1 x mini-PCIe w/o SIM card holder slot to support mSATA storage
- 1 x Hard drive bay: support 1 x 2.5" SATA HDD/SSD (optional)
Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)
H/W status monitor: monitoring system temperature and voltage
Expansion:
- 2 x mini-PCIe sockets (support optional Wi-Fi or 3.5G module/ NVRAM/mSATA storage)
- 2 x Expansion slots for add-on PCI or/and PCIe cards (optional)
- 1 x PCI and 1 x PCIe x4 slots
- 2 x PCIe x4 slots
- 2 x PCI slots
- 1 x PCIe x16 slot
1 x Front accessible USB 2.0
|

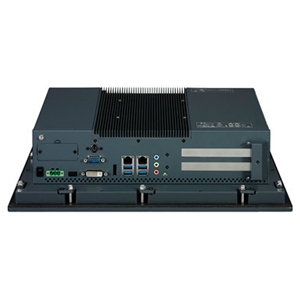

| Rear I/O |
1 x PS2 for keyboard/mouse
Ethernet: 2 x RJ45
2nd/3rd display: additional independent DisplayPort: 1 x DVI-I (DVI-D + DVI-A) and 1 x DisplayPort
Audio port: 1 x Line-out; 1 x Line-in; 1 x Mic-in
USB: 4 x USB 3.0
3-pin remote power on/off switch connector
Reset button
COM#1: RS232/422/485 w/ 5V or 12V selection
ATX power switch
|

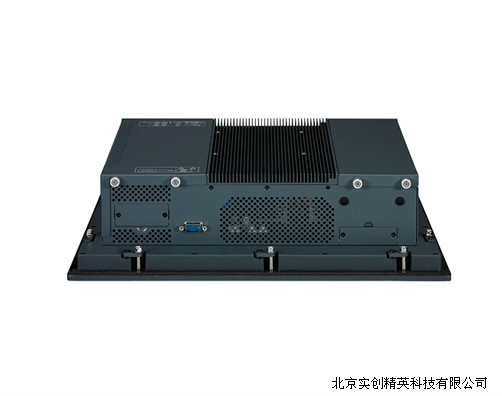

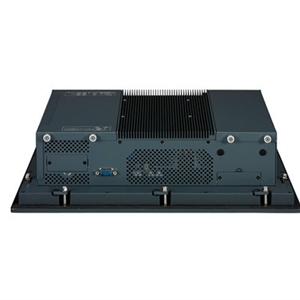

| Top I/O |
COM#2 RS232/422/485 w/ 5V or 12V selection |
| Audio |
HD codec: Realtek ALC886-GR
Audio interface: Line-out/Line-in/Mic-in audio jack
|
| Ethernet |
LAN chip: dual Intel® I210IT Gigabit LAN
Ethernet interface: 10/100/1000 Base-Tx Ethernet compatible
|
| Fieldbus |
Support up to two Fieldbus module |
| Mechanical & Environment |
Color: Pantone 432C\RAL 70 24 front bezel
Enclosure: aluminum front bezel with SPPC nickel plated housing
IP protection: IP66 front
Mounting: panel/wall/stand/VESA 100mm x 100mm
Power:
- Power input: 12~30 VDC
- Power connector: 3-pin Phoenix connector
Vibration:
- IEC 68 2-64 (w/ HDD)
- 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating)
- 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating)
- 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)
Shock:
- IEC 68 2-27
- HDD: 20G @ wall mount, half sine, 11ms
Operating temperature
- Resistive: -20°C to 50°C
- P-Cap: -20°C to 50°C
Storage temperature: -20°C to 75°C
Operating humidity: 10%~90% relative humidity, non-condensing (for IPPC A1570T series, limits to be at 90% RH at max 50°C)
Dimension: 400 x 330 x 104.9 mm
Weight: (barebone)
IPPC A1570TE2-DC: 8.99kg
IPPC A1570PE2-DC: 9.08kg
|
| Certifications |
CE (including EN61000-6-2/EN61000-6-4), FCC Class A |
| OS Support Lists |
Windows 7 32-bit and 64-bit
Windows 8.1 32-bit and 64-bit
|
