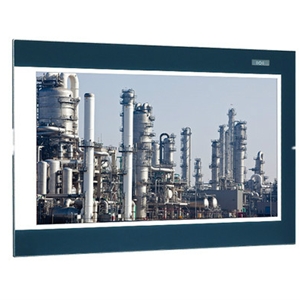

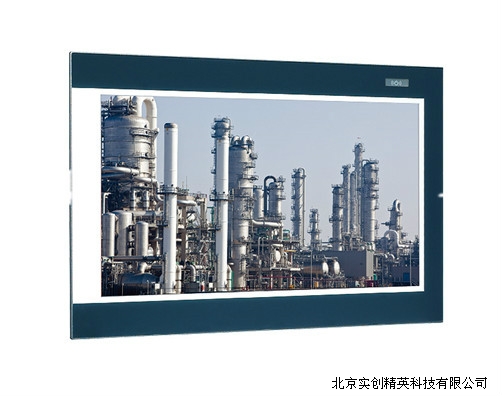

| Panel |
LCD size: 21.5”, 16:9
Resolution: Full HD 1920x1080
Luminance: 300cd/m2
Contrast ratio: 5000
LCD color: 16.7M
Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R)
Backlight: LED
|
| Touch |
Ten points P-Cap (Projected Capacitive Touch)
Touch light transmission: 87%
Anti-scratch surface: 7H hardness
Touch interface: USB
Windows 8 compliance
|
| System |
CPU: onboard Intel® Celeron® Quad Core processor J1900, 2.0GHz, 2M L2 Cache (maximum frequency 2.42GHz if turbo boost enabled)
BIOS: AMI BIOS
System memory: 2 x 204-pin DDR3L SO-DIMM socket, 4GB DDR3L (default), support up to 4GB DDR3L-1066/1333, non-ECC and un-buffered
Storage device:
- 1 x external locked CFast socket
- 1 x hard drive bay: optional 1 x 2.5” SATA HDD or 1 x SATA DOM
Watchdog timer: Watchdog timeout can be programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes (tolerance 15% under room temperature 25°C)
H/W status monitor: monitoring system temperature, and voltage
Expansion: 2 x mini-PCIe sockets (support optional Wi-Fi, 3.5G module or fieldbus card)
Panel backlight control button: Increase brightness/decrease brightness/ backlight on/off
Front logo LED Indicator to show operating status
|

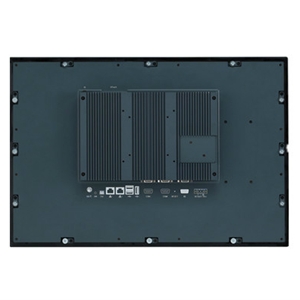

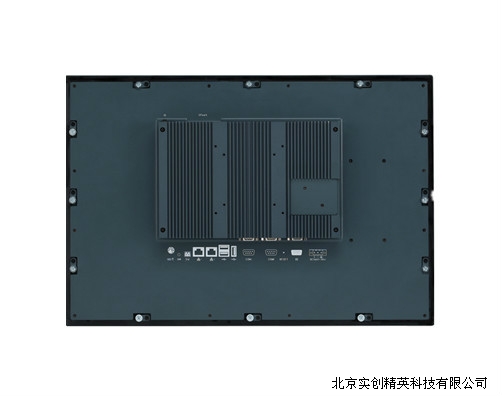

| Rear I/O |
Ethernet: 2 x RJ45
2nd display VGA port: 1 x DB15
Audio port: 1 x Line out
USB: 2 x USB 2.0, 1 x USB 3.0
2-pin Remote Power on/ off switch
Power switch
Reset button
COM #1: RS232/422/485 w/ 2.5kv isolated
COM #2: RS232/422/485 w/ 2.5kv isolated
Fieldbus: (protocol interface optional)
- FBI90E-PNM
Protocol: PROFINET Master
Connector: Dual RJ-45
- FBI90E-EP
Protocol: Ethernet/IP master
Connector: Dual RJ-45
- FBI90E-ECM
Protocol: EtherCAT Master
Connector: Dual RJ-45
- FBI90E-PBM
Protocol: PROFIBUS Master
Connector: DB9
- FBI90E-DNM
Protocol: DeviceNet master
Connector: 5-pins Phoenix contact terminal
|
| Audio |
HD codec: Realtek ALC886-GR
Audio interface: Line-out audio jack
|
| Ethernet |
LAN chip: dual Intel® I210AT Gigabit LAN
Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible
|
| Mechanical & Environment |
Color: Pantone 432C/RAL 70 24 front bezel
IP protection: IP66 front
Mounting: panel/ wall/ stand/ VESA 100mm x 100mm
System with panel mounting kit w/o panel mounting hole
Power input: 12~30VDC
Power adapter: Optional AC to DC power adapter (+12V, 60W)
Vibration:
- IEC 68 2-64 (w/ HDD)
- 1Grms @ sine, 5~500Hz, 1hr/axis (HDD operating)
- 2Grms @ sine, 5~500Hz, 1hr/axis (CFast operating)
- 2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (non-operating)
Shock:
- IEC 68 2-27
- HDD: 20G@wall mount, half sine, 11ms
Operating temperature: -10°C to 60°C
Storage temperature: -20°C to 75°C
Operating humidity: 10%~90% relative humidity, non-condensing
Dimension: 562.4x382.4x62.85mm
Weight: 9.26Kg
|
| Certifications |
CE (including EN61000-6-2/EN61000-6-4)
FCC Class A
|
| OS Support Lists |
Windows 8 32bit/64bit
Windows 7 32bit/64bit
WinCE 7.0
|
