| 显示屏规格 |
10.1”, 16:10, WXGA, 1280 x 800
Luminance: 500cd/m2
Contrast ratio: 800:1
LCD color: 16.7M
Viewing angle: 85 (U), 85 (D), 85 (L), 85 (R)
Backlight: LED
|
| 触摸屏规格 |
Touch: 10 points P-Cap
Touch light transmission: 87%
Touch interface: USB
Anti-scratch surface: 7H hardness
|
| 安全防护 |

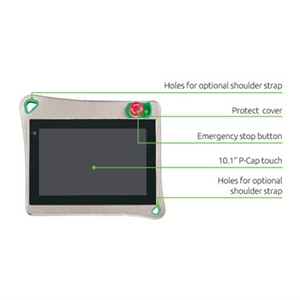

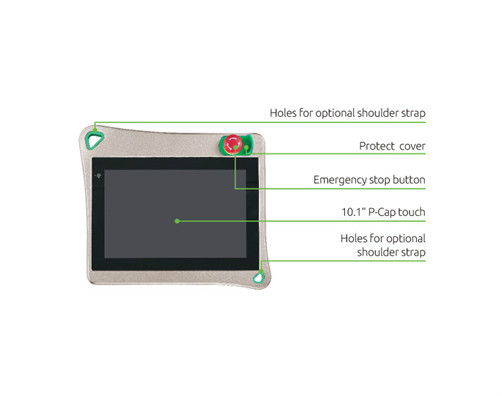

Emergency stop button (2 NC channels, B10d=130,000)
- Contact function: latching
- Reset: by rotating
3-position deadman switch (3 channels 2 NO &1 NC, B10d=100,000)
|
| 操作防护 |
2-position key switch (2 channels) |
| 硬件参数 |
Processer: Intel® Atom™ E3826
Memory: 32GB eMMC
RAM: 4GB DDR3L Full IP65 protection
Communication interface:
- Ethernet 10/100/1000 Mbit/s
- LAN chip: dual Intel® I210IT Gigabit LAN
Expansion: 1 x mini-PCIe sockets (support optional Wi-Fi/NVRAM/mSATA storage)
5MP camera
OS support list: Windows 8.1 32/64-bit, Windows 7 32/64-bit
|
| 对外接口 |

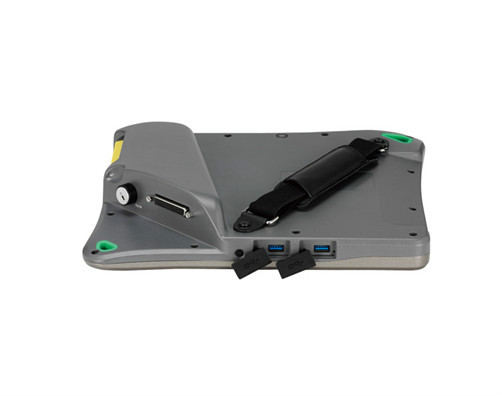

Data back-up: 2x USB 3.0
Controle connector: HDB-44 Female
- Removable HDB-44 Control Cable (optional)
- Including power, E-stop buttons, deadman switch, key switch and Giga LAN signals
|
| 供电 |
Power supply voltage: 24 Vdc (19.2 to 28.8 Vdc)
Current consumption: 0.76A at 24Vdc (max.)
|
| 机械结构 |
Dimension: 297.3 x 257.2 x57.2 mm (78.5mm including E-stop button)
Weight (without external control cable): 1.45Kg
Front bezel: aluminum magnesium alloy; color: Pantone 8424C
Back cover: ABS+PC; color: Pantone 432C
IP protection class: Full IP65
|
| 环境要求 |
Operatng temperature: 0°C to 45°C
Storage temperature: -20°C to 75°C
Operating humidity: 5%~90% relative humidity, non-condensing
Vibration resistance/shock-proof/ free-fall according to EN 61131-2
|
| 安规认证 |
CE (Emission EN61000-6-4; Immunity EN61000-6-2 for installation in industrial environments)
FCC Class A
|
