| CPU |
Option: Support Intel® Atom™ processor E3845 Quad Core,1.91GHz (by request) |
| 内存 |
On-board 2GB DDR3L 1066/1333 RAM
- Un-buffered and non-ECC
- Max up to 4GB for option
|
| 显示 |
1 x HDMI display |

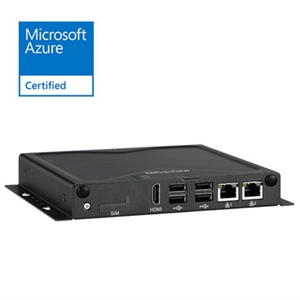

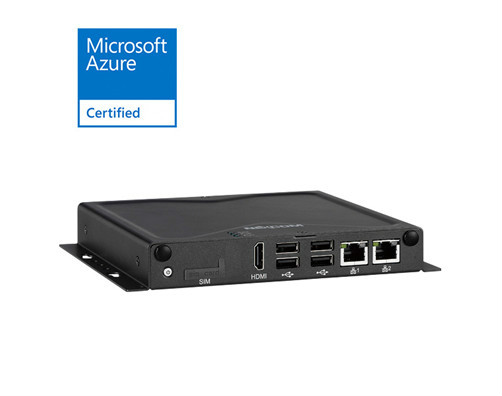

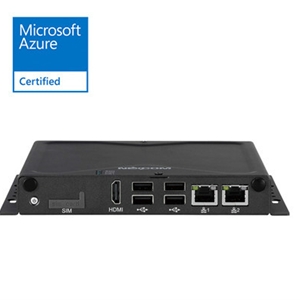

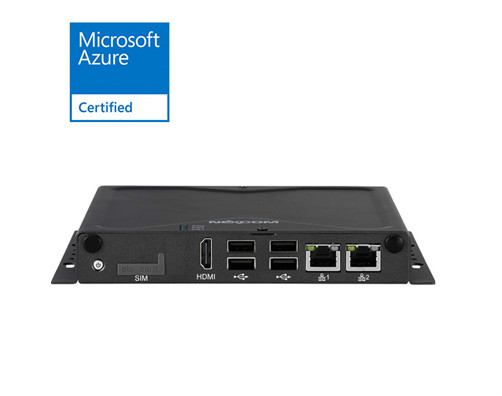

| 前面板接口 |
ATX power on/off switch
1 x Storage/2 x GPO Programmable LED
1 x SIM Card holder
2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE
1 x HDMI Display Output
4 x USB 2.0 (500mA per each)
2 x Antenna Holes for optional Wi-Fi/3.5G antenna
|

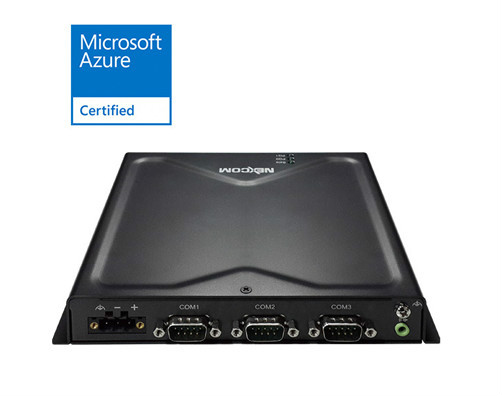

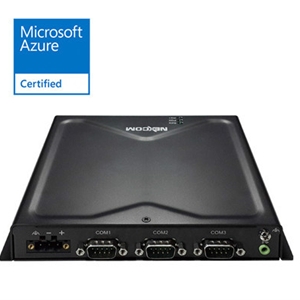

| 后面板接口 |
3 x DB9 for COM1 & COM2 & COM3
- COM1: full RS232 signal
- COM2: RS232, only support Tx/Rx/GND
- COM3: RS422/485 auto flow control
1 x Line-out
Support 24V DC INPUT
|
| 内部接口 |
4 x GPI and 4 x GPO (Programmable to GPI or GPO)
1 x DB9, only support RS232, Tx/Rx/GND single
|
| 存储设备 |
On-board 16GB EMMC
Optional mSATA module
|
| 扩展槽 |
3 x Mini-PCIe socket for optional Wi-Fi/3.5G modules
- Mini-PCIe: CN5; Size: Full; USB: V; PCIe:N/A; mSATA: Support; 3.5G/4G: Support
- Mini-PCIe: CN6; Size: Full; USB: V; PCIe:V; mSATA: N/A; 3.5G/4G: Support
- Mini-PCIe: CN7; Size: Half; USB: V; PCIe:V; mSATA: N/A; 3.5G/4G: N/A
|
| 电源规格 |
ower input: 24V DC +/-20%
1 x optional 24V, 60W power adapter
|
| 操作系统支持 |
Model Name: NISE 50
Storage: eMMC 16GB
Memory: 2GB
OS: Android4.4/WES8 32bit
Model Name: NISE 50
Storage: mSATA
Memory: 2GB
OS: WES8 32bit/WIN7 PRO 32bit/WES7E 32bit/WEC7 32bit
Model Name: NISE 50-4G-32G
Storage: eMMC 32GB
Memory: 4GB
OS: Android4.4 64bit/WIN10 IOT Ent. 64bit/WES8 64bit
Model Name: NISE 50-4G-32G
Storage: mSATA
Memory: 4GB
OS: WIN10 IOT Ent. 64bit/WES8 64bit/WIN7 PRO 64bit/WES7E 64bit/WEC7 32bit
Model Name: NISE 50W
Storage: SSD
Memory: 2GB
OS: WES8 32bit/WIN7 PRO 32bit/WES7E 32bit/WEC7 32bit
* Note: only one LAN can be active under Android 4.4
|
| 尺寸 |
162mm(W) x 26mm(H) x 150mm(D) without wall-mount bracket |
| 结构 |
Metal Chassis with fanless design |
| 环境 |
Operating Temperature:
Ambient with air flow: -5°C to 55°C
(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage Temperature: -20°C to 75°C
Relative Humidity: 10% to 95% (non-Condensing)
Shock Protection:
- mSATA / EMMC: 50G, half sine, 11ms, IEC60068-27
Vibration protection w/mSATA or EMMC condition:
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
|
| 认证 |
CE
FCC Class A
UL/cUL
|
