| CPU |
Onboard Intel® Atom™ processor E3826 Dual Core, 1.46GHz
Support Intel® Atom™ E3800 processor family from Single Core E3815, Dual Core E3825/E3826/E3827 and Quad Core E3845 with difference SKUs
|
| 内存 |
x DDR3L SO-DIMM Socket, Support DDR3L 1066/1333 4GB RAM max., un-buffered and non-ECC |
| 显示选项 |
Dual Independent Display
- HDMI and DVI-D
- HDMI and VGA (via DVI-I to VGA converter)
|

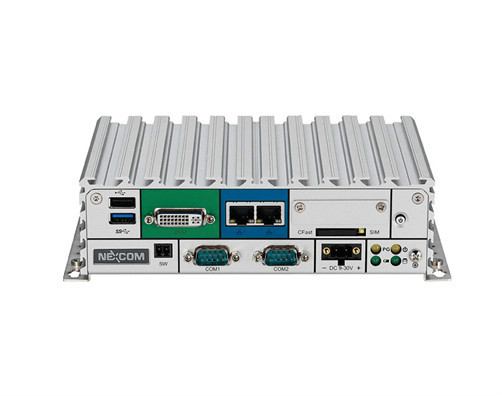

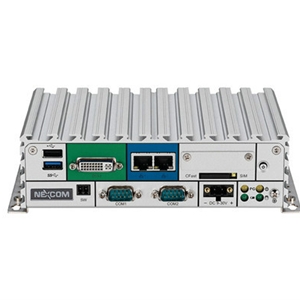

| 前置I/O界面 |
ATX power on/off switch
1 x Power Status/1 x HDD Access/1 x Battery Low/1 x Programing LEDs
1 x External CFast socket
1 x SIM Card holder
2 x Intel® I210IT GbE LAN Ports, support Wake on LAN, Teaming and PXE
1 x DVI-I Display Output
1 x USB3.0 (900mA per each)
1 x USB2.0 (500mA per each)
2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control
- Jumper-free setting on RS232/422/485
- Support 5V/12V/Ring function by jumper setting, Ring as the
default (COM2 Only)
1 x Remote Power ON/OFF Switch
1 x 2-pin DC input, support +9 to 30VDC input
|
| 后置I/O界面 |
1 x USB2.0
1 x HDMI
1 x RTC Battery
2 x DB9 for COM3 & COM4
- NISE 105 : support RS232 only
- NISE 105A: support RS232/422/485 with auto flow control
1 x Mic-in & 1 x Line-out
2 x Antenna Holes for optional Wi-Fi/3.5G antenna
1 x Optional I/F for optional miniPCIe Wi-Fi/3.5G/Hilscher Automation module output
|
| I/O界面 - 内部 |
4 x GPI and 4 GPO (5V, TTL Type) |
| 存储设备 |
1 x CFast (SATA2.0)
1 x 2.5" HDD (SATA2.0)
1Mb NVRAM(on NISE105A Only)
|
| 扩展槽 |
1 x Mini-PCIe socket for optional Wi-Fi/ 3.5G/ Hilscher automation modules |
| 电源需求 |
Power input: +9VDC to +30VDC
1 x optional 24V, 60W power adapter
|
| 操作系统支持 |
Windows 8, 32bit/64bit
Windows Embedded Standard 8, 32-bit/64-bit
Windows 7, 32-bit/64-bit
Windows Embedded Standard 7, 32-bit/64-bit
Windows Embedded Compact 7, 32-bit
Linux Kernel version 3.8.0
|
| 尺寸 |
185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket |
| 构造 |
Aluminum and Metal Chassis with fanless design |
| 运行环境 |
Operating Temperature:
Ambient with air flow: -20°C to 70°C with industrial grade device
(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage Temperature: -30°C to 85°C
Relative Humidity: 10% to 95% (non-Condensing)
Shock Protection:
- HDD: 20G, half sine, 11ms, IEC60068-2-27
- CFast: 50G, half sine, 11ms, IEC60068-2-27
Vibration Protection w/HDD Condition:
- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Vibration Protection w/CFast & SSD Condition:
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
|
| 认证 |
CE
FCC Class A
UL / cUL
|
