| CPU |
Onboard Intel® Celeron® Quad Core Processor N3160, 2M Cache, 1.6GHz |
| 内存 |
1 x DDR3L SO-DIMM socket, support DDR3L 1600 4GB RAM max., un-buffered and non-ECC |
| 显示 |
1 x HDMI + 1 x DVI-D + 1 x DP display port |

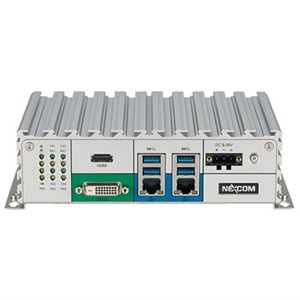

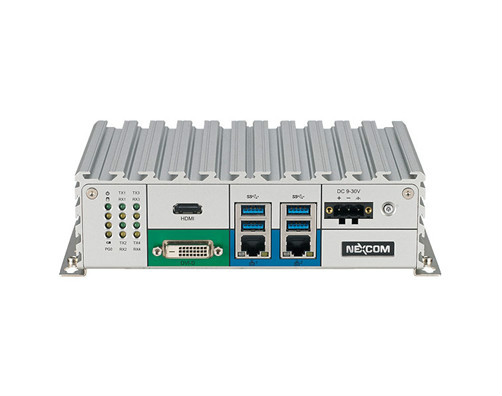

| 前面板接口 |
ATX power on/off switch
1 x Power status/1 x HDD access/1 x battery low/1 x programing/
4 x Tx/Rx LEDs
2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE
1 x HDMI + 1x DVI-D display output
4 x USB 3.0 (900mA per each)
1 x 3-pin DC input, support +9 to 30VDC input
|

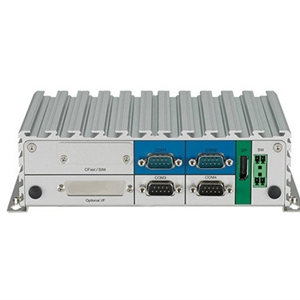

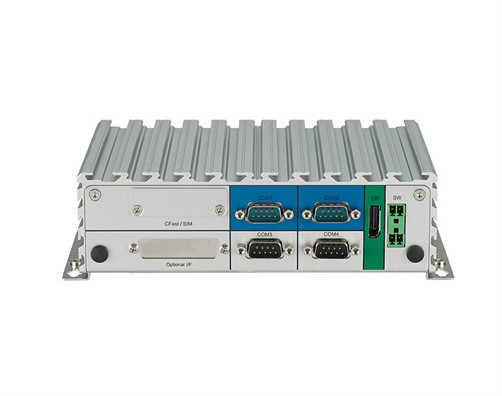

| 后面板接口 |
1 x Display Port
1 x SIM Card holder
1 x external CFast socket
2 x DB9 for RS232/422/485 with auto flow control (COM1 and COM2)
2 x DB9 for RS232 (COM3 and COM4)
2 x Antenna holes for optional Wi-Fi/3.5G antenna
1 x remote power on/off switch
1 x optional I/F for optional Mini-PCIe Wi-Fi/3.5G/LTE/NEXCOM's automation module output
|
| 内部接口 |
4 x GPI and 4 x GPO (5V, TTL type) |
| 存储设备 |
1 x 2.5" HDD (SATA3.0) |
| 扩展槽 |
1 x Mini-PCIe socket for optional Wi-Fi/4G LTE/3.5G modules |
| 电源规格 |
Power input: +9 to 30 Vdc
1 x optional 24V, 60W power adapter
|
| 尺寸 |
185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket |
| 结构 |
Aluminum chassis with fanless design |
| 环境 |
Operating Temperature:
Ambient with air flow: -5°C to 55°C
(according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage temperature: -30°C to 85°C
Relative Humidity: 10% to 95% (non-condensing)
Shock protection:
- HDD: 20G, half sine, 11ms, IEC60068-27
- CFast: 50G, half sine, 11ms, IEC60068-27
Vibration protection w/HDD condition:
- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Vibration protection w/CFast & SSD condition:
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
|
| 认证 |
CEFCC Class A |
| 操作系统支持 |
Windows 7,64-bit only
Windows 8.1,64-bit only
Windows Embedded Standard 7, 32-bit and 64-bit
Windows 10 IoT Enterprise, 64-bit only
|
