| 支持CPU |
Onboard Intel® Celeron® processor J1900 Quad Core 2.0GHz
Support Intel® Atom™ E3800 processor family from Single Core E3815, Dual Core E3825/E3826/E3827 and Quad Core E3845 with difference SKUs
|
| 内存 |
2 x DDR3L SO-DIMM socket, support DDR3L 1066/1333 8GB RAM max., un-buffered and non-ECC
|

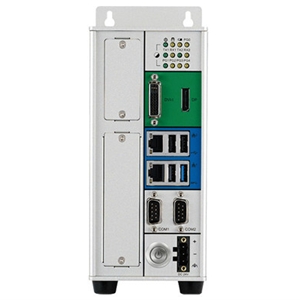

| 前面板I/O接口 |
ATX power on/off switch
LEDs for HDD LED, Batty LEDs, Power LED, COM port Tx/Rx, 5x programmable GPO LEDs
1 x External SD Card
1 x SIM card holder
2 x Intel® I210AT GbE LAN ports, support WoL, Teaming and PXE
1 x DP display output
1 x DVI-I display output
1 x USB 3.0 (900mA per each)
3 x USB 2.0 (500mA per each)
2 x RS232/422/485 support auto flow control
- Jumper-free setting on RS232/422/485
- Support 2.5KV isolation protection on COM1
1 x 3-pin DC input, Typical 24V DC input with +/-20% range
|
| 存储设备接口 |
1 x 2.5" SSD/HDD(SATA 2.0) --front accessible
1 x SD card (Data storage only)
1 x mSATA
|
| 扩展槽 |
Onboard Intel® Celeron® processor J1900 Quad Cord 2.0GHz2 x Mini-PCIe socket for optional Wi-Fi/3.5G/4G LTE/Fieldbus modules |
| 供电&电压范围 |
Typical 24V DC input with +/-20% range, with reverse polarity protection
1 x optional 24V, 60W power adapter
|
| 结构尺寸 |
85mm (W) x 157mm (D) x 214mm (H)，Aluminum and metal chassis with fanless design |
| 环境特性 |
Operating temperature:
Ambient with air flow: -5°C to 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage temperature: -20°C to 80°C
Relative humidity: 10% to 95% (non-condensing)
Shock protection:
- SSD: 20G, half sine, 11ms, IEC60068-2-27
- CFast: 50G, half sine, 11ms, IEC60068-2-27
Vibration protection w/ CFast & SSD condition:
- Random: 2Grms @ 5 ~ 500Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5 ~ 500Hz, IEC60068-2-6
|
| 工业认证 |
CEFCC Class A |
